EG2CS - Short Ferrule

Material Type
Size

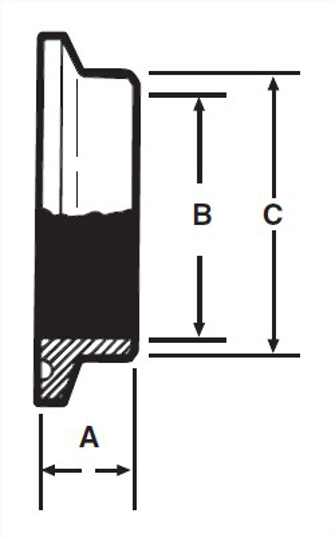

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	Product Weight
0.25	0.5	12.7	0.12	--
0.375	0.5	12.7	0.245	--
0.5	0.5	12.7	0.37	0.04
0.625	0.5	12.7	0.495	--
0.75	0.5	12.7	0.62	0.04
1	0.5	12.7	0.87	0.14
1.25	0.5	12.7	1.12	--
1.5	0.5	12.7	1.37	0.1
2	0.5	12.7	1.87	0.14
2.5	0.5	12.7	2.37	0.16
3	0.5	12.7	2.87	0.2
4	0.625	15.88	3.834	0.38
5	0.75	19.05	4.78	--
6	0.875	22.23	5.78	0.9
8	0.937	23.8	7.782	--
10	0.937	23.8	9.732	--
12	0.937	23.8	11.732	2.3

	VNE part number
OD Tube Size	304	316L
0.25	--	EG2CS-6L.25
0.375	--	EG2CS-6L.375
0.5	--	EG2CS-6L.5
0.625	--	EG2CS-6L.625
0.75	--	EG2CS-6L.75
1	EG2CS1.0	EG2CS-6L1.0
1.25	--	EG2CS-6L1.25
1.5	EG2CS1.5	EG2CS-6L1.5
2	EG2CS2.0	EG2CS-6L2.0
2.5	EG2CS2.5	EG2CS-6L2.5
3	EG2CS3.0	EG2CS-6L3.0
4	EG2CS4.0	EG2CS-6L4.0
5	--	EG2CS-6L5.0
6	EG2CS6.0	EG2CS-6L6.0
8	EG2CS8.0	EG2CS-6L8.0
10	EG2CS10.0	EG2CS-6L10.0
12	--	EG2CS-6L12.0

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2CS1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-1-304
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	0.5
A, mm.	12.7
B, in.	0.87
Product Weight	0.14

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2CS1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-1.5-304
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	0.5
A, mm.	12.7
B, in.	1.37
Product Weight	0.1

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2CS2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-2-304
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	0.5
A, mm.	12.7
B, in.	1.87
Product Weight	0.14

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2CS2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-2.5-304
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	0.5
A, mm.	12.7
B, in.	2.37
Product Weight	0.16

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2CS3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-3-304
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	0.5
A, mm.	12.7
B, in.	2.87
Product Weight	0.2

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2CS4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-4-304
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	0.625
A, mm.	15.88
B, in.	3.834
Product Weight	0.38

Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2CS6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-6-304
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	0.875
A, mm.	22.23
B, in.	5.78
Product Weight	0.9

Material Type	304
Size	8
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	8
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2CS8.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-8-304
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	0.937
A, mm.	23.8
B, in.	7.782

Material Type	304
Size	10
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	10
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2CS10.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-10-304
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	0.937
A, mm.	23.8
B, in.	9.732

Material Type	316L
Size	8
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	8
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2CS8.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-8-316
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	0.937
A, mm.	23.8
B, in.	7.782
Product Weight	1.16

Material Type	316L
Size	10
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	10
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2CS10.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-10-316
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	0.937
A, mm.	23.8
B, in.	9.732

Material Type	316L
Size	12
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	12
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2CS12.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-12-316
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	0.937
A, mm.	23.8
B, in.	11.732
Product Weight	2.3

Material Type	316L
Size	0.25
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	0.25
Wall Thickness	0.035
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2CS.25.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	14WMP-.25-316
A, in.	0.5
A, mm.	12.7
B, in.	0.12

Material Type	316L
Size	0.375
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	0.375
Wall Thickness	0.035
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2CS.375.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-.375-316
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	0.5
A, mm.	12.7
B, in.	0.245

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	0.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-.50-316
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	0.5
A, mm.	12.7
B, in.	0.37
Product Weight	0.04

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	0.625
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	0.625
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-.625-316
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	0.5
A, mm.	12.7
B, in.	0.495

Material Type	316L
Size	0.75
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2CS.75.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-.75-316
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	0.5
A, mm.	12.7
B, in.	0.62
Product Weight	0.04

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2CS1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-1-316
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	0.5
A, mm.	12.7
B, in.	0.87
Product Weight	0.14

Material Type	316L
Size	1.25
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1.25
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2CS1.25.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-1.25-316
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	0.5
A, mm.	12.7
B, in.	1.12

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2CS1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-1.5-316
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	0.5
A, mm.	12.7
B, in.	1.37
Product Weight	0.1

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2CS2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-2-316
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	0.5
A, mm.	12.7
B, in.	1.87
Product Weight	0.14

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2CS2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-2.5-316
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	0.5
A, mm.	12.7
B, in.	2.37
Product Weight	0.16

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2CS3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-3-316
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	0.5
A, mm.	12.7
B, in.	2.87
Product Weight	0.2

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2CS4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-4-316
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	0.625
A, mm.	15.88
B, in.	3.834
Product Weight	0.38

Material Type	316L
Size	5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	5
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2CS5.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-5-316
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	0.75
A, mm.	19.05
B, in.	4.78

Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2CS6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-6-316
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	0.875
A, mm.	22.23
B, in.	5.78
Product Weight	0.9
