2S-KURZ - Din 11851 Male Threaded Ferrule

Material Type
Size

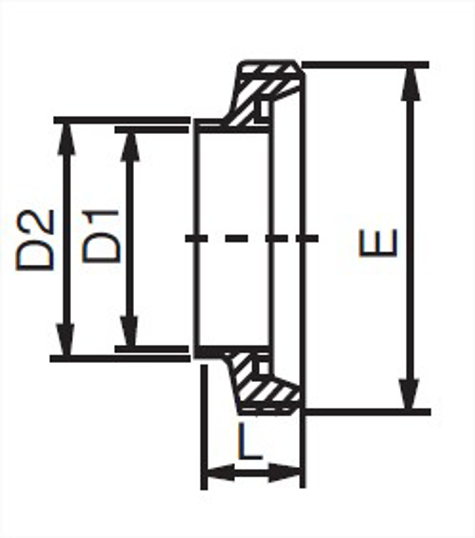

View Dimensions

Dimensions

OD Tube Size	D1, in.	D1, mm.	D2, in.	D2, mm.	E, in.	L, in.	L, mm.	Product Weight
DN10	0.39	10	0.51	13	Rd 28 x 1/8"	0.67	17	0.08
DN15	0.63	16	0.75	19	Rd 34 x 1/8"	0.67	17	0.1
DN20	0.79	20	0.91	23	Rd 44 x 1/6"	0.75	19	0.18
DN25	1.02	26	1.14	29	Rd 52 x 1/6"	0.87	22	0.24
DN32	1.26	32	1.38	35	Rd 58 x 1/6"	0.87	22	0.3
DN40	1.5	38	1.61	41	Rd 65 X 1/6"	0.87	22	0.32
DN50	1.97	50	2.09	53	Rd 78 x 1/6"	0.91	23	0.44
DN65	2.6	66	2.76	70	Rd 95 x 1/6"	0.98	25	0.7
DN80	3.19	81	3.35	85	Rd 110 x 1/4"	0.98	25	0.94
DN100	3.94	100	4.09	104	Rd 130 x 1/4"	1.18	30	1.12
DN125	4.92	125	5.08	129	Rd 160 x 1/4"	1.4	35.5	--
DN150	5.91	150	6.06	154	Rd 190 x 1/4"	1.57	40	--

	VNE part number
OD Tube Size	304	316L
DN10	2S-KURZ-NW10	2S-KURZ-6-NW10
DN15	2S-KURZ-NW15	2S-KURZ-6-NW15
DN20	2S-KURZ-NW20	2S-KURZ-6-NW20
DN25	2S-KURZ-NW25	2S-KURZ-6-NW25
DN32	2S-KURZ-NW32	2S-KURZ-6-NW32
DN40	2S-KURZ-NW40	2S-KURZ-6-NW40
DN50	2S-KURZ-NW50	2S-KURZ-6-NW50
DN65	2S-KURZ-NW65	2S-KURZ-6-NW65
DN80	2S-KURZ-NW80	2S-KURZ-6-NW80
DN100	2S-KURZ-NW100	2S-KURZ-6-NW100
DN125	2S-KURZ-NW125	2S-KURZ-6-NW125
DN150	2S-KURZ-NW150	2S-KURZ-6-NW150

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN10
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN10
Wall Thickness	1.5
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D1, in.	0.39
D1, mm.	10
D2, in.	0.51
D2, mm.	13
E, in.	Rd 28 x 1/8"
L, in.	0.67
L, mm.	17
Product Weight	0.08

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN15
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN15
Wall Thickness	1.5
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D1, in.	0.63
D1, mm.	16
D2, in.	0.75
D2, mm.	19
E, in.	Rd 34 x 1/8"
L, in.	0.67
L, mm.	17
Product Weight	0.1

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN20
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN20
Wall Thickness	1.5
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D1, in.	0.79
D1, mm.	20
D2, in.	0.91
D2, mm.	23
E, in.	Rd 44 x 1/6"
L, in.	0.75
L, mm.	19
Product Weight	0.18

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN25
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN25
Wall Thickness	1.5
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D1, in.	1.02
D1, mm.	26
D2, in.	1.14
D2, mm.	29
E, in.	Rd 52 x 1/6"
L, in.	0.87
L, mm.	22
Product Weight	0.24

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN32
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN32
Wall Thickness	1.5
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D1, in.	1.26
D1, mm.	32
D2, in.	1.38
D2, mm.	35
E, in.	Rd 58 x 1/6"
L, in.	0.87
L, mm.	22
Product Weight	0.3

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN40
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN40
Wall Thickness	1.5
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D1, in.	1.5
D1, mm.	38
D2, in.	1.61
D2, mm.	41
E, in.	Rd 65 X 1/6"
L, in.	0.87
L, mm.	22
Product Weight	0.32

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN50
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN50
Wall Thickness	1.5
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D1, in.	1.97
D1, mm.	50
D2, in.	2.09
D2, mm.	53
E, in.	Rd 78 x 1/6"
L, in.	0.91
L, mm.	23
Product Weight	0.44

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN65
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN65
Wall Thickness	2
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D1, in.	2.6
D1, mm.	66
D2, in.	2.76
D2, mm.	70
E, in.	Rd 95 x 1/6"
L, in.	0.98
L, mm.	25
Product Weight	0.7

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN80
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN80
Wall Thickness	2
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D1, in.	3.19
D1, mm.	81
D2, in.	3.35
D2, mm.	85
E, in.	Rd 110 x 1/4"
L, in.	0.98
L, mm.	25
Product Weight	0.94

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN100
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN100
Wall Thickness	2
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D1, in.	3.94
D1, mm.	100
D2, in.	4.09
D2, mm.	104
E, in.	Rd 130 x 1/4"
L, in.	1.18
L, mm.	30
Product Weight	1.12

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN125
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN125
Wall Thickness	2
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D1, in.	4.92
D1, mm.	125
D2, in.	5.08
D2, mm.	129
E, in.	Rd 160 x 1/4"
L, in.	1.4
L, mm.	35.5

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN150
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN150
Wall Thickness	2
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D1, in.	5.91
D1, mm.	150
D2, in.	6.06
D2, mm.	154
E, in.	Rd 190 x 1/4"
L, in.	1.57
L, mm.	40

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	DN10
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN10
Wall Thickness	1.5
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	0.39
D1, mm.	10
D2, in.	0.51
D2, mm.	13
E, in.	Rd 28 x 1/8"
L, in.	0.67
L, mm.	17

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	DN15
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN15
Wall Thickness	1.5
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	0.63
D1, mm.	16
D2, in.	0.75
D2, mm.	19
E, in.	Rd 34 x 1/8"
L, in.	0.67
L, mm.	17

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	DN20
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN20
Wall Thickness	1.5
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	0.79
D1, mm.	20
D2, in.	0.91
D2, mm.	23
E, in.	Rd 44 x 1/6"
L, in.	0.75
L, mm.	19

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	DN25
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN25
Wall Thickness	1.5
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	1.02
D1, mm.	26
D2, in.	1.14
D2, mm.	29
E, in.	Rd 52 x 1/6"
L, in.	0.87
L, mm.	22

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	DN32
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN32
Wall Thickness	1.5
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	1.26
D1, mm.	32
D2, in.	1.38
D2, mm.	35
E, in.	Rd 58 x 1/6"
L, in.	0.87
L, mm.	22

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	DN40
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN40
Wall Thickness	1.5
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	1.5
D1, mm.	38
D2, in.	1.61
D2, mm.	41
E, in.	Rd 65 X 1/6"
L, in.	0.87
L, mm.	22

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	DN50
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN50
Wall Thickness	1.5
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	1.97
D1, mm.	50
D2, in.	2.09
D2, mm.	53
E, in.	Rd 78 x 1/6"
L, in.	0.91
L, mm.	23

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	DN65
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN65
Wall Thickness	2
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	2.6
D1, mm.	66
D2, in.	2.76
D2, mm.	70
E, in.	Rd 95 x 1/6"
L, in.	0.98
L, mm.	25

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	DN80
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN80
Wall Thickness	2
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	3.19
D1, mm.	81
D2, in.	3.35
D2, mm.	85
E, in.	Rd 110 x 1/4"
L, in.	0.98
L, mm.	25

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	DN100
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN100
Wall Thickness	2
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	3.94
D1, mm.	100
D2, in.	4.09
D2, mm.	104
E, in.	Rd 130 x 1/4"
L, in.	1.18
L, mm.	30

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	DN125
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN125
Wall Thickness	2
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	4.92
D1, mm.	125
D2, in.	5.08
D2, mm.	129
E, in.	Rd 160 x 1/4"
L, in.	1.4
L, mm.	35.5

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	DN150
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN150
Wall Thickness	2
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	5.91
D1, mm.	150
D2, in.	6.06
D2, mm.	154
E, in.	Rd 190 x 1/4"
L, in.	1.57
L, mm.	40
