2C - Thread BS x Thread BS 90 Degree Elbow

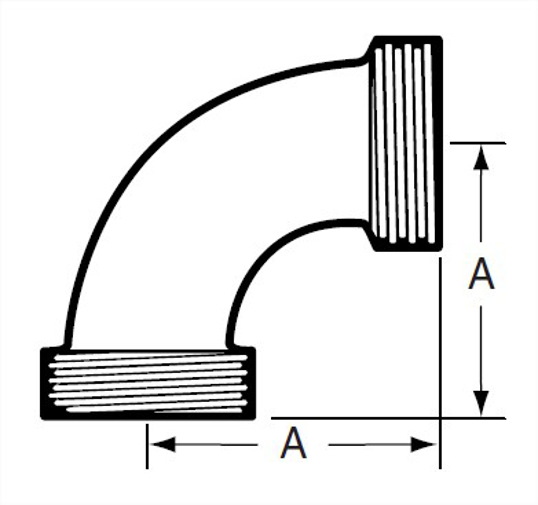

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	Product Weight
1	2.187	55.55	0.36
1.5	2.937	74.6	0.64
2	3.718	94.44	1.1
2.5	4.593	116.66	1.9
3	5.437	138.1	2.66
4	7	177.8	5.02

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2C
Wayland Part Number	W2C
Dixon Part Number	B2C
Sanitary Solutions Part Number	SS2C
Sanitube Part Number	2C
A, in.	2.187
A, mm.	55.55
Product Weight	0.36

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2C
Wayland Part Number	W2C
Dixon Part Number	B2C
Sanitary Solutions Part Number	SS2C
Sanitube Part Number	2C
A, in.	2.937
A, mm.	74.6
Product Weight	0.64

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2C
Wayland Part Number	W2C
Dixon Part Number	B2C
Sanitary Solutions Part Number	SS2C
Sanitube Part Number	2C
A, in.	3.718
A, mm.	94.44
Product Weight	1.1

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2C
Wayland Part Number	W2C
Dixon Part Number	B2C
Sanitary Solutions Part Number	SS2C
Sanitube Part Number	2C
A, in.	4.593
A, mm.	116.66
Product Weight	1.9

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2C
Wayland Part Number	W2C
Dixon Part Number	B2C
Sanitary Solutions Part Number	SS2C
Sanitube Part Number	2C
A, in.	5.437
A, mm.	138.1
Product Weight	2.66

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2C
Wayland Part Number	W2C
Dixon Part Number	B2C
Sanitary Solutions Part Number	SS2C
Sanitube Part Number	2C
A, in.	7
A, mm.	177.8
Product Weight	5.02

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2C
Wayland Part Number	W2C
Dixon Part Number	B2C
Sanitary Solutions Part Number	SS2C
Sanitube Part Number	2C
A, in.	2.187
A, mm.	55.55
Product Weight	0.36

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2C
Wayland Part Number	W2C
Dixon Part Number	B2C
Sanitary Solutions Part Number	SS2C
Sanitube Part Number	2C
A, in.	2.937
A, mm.	74.6
Product Weight	0.64

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2C
Wayland Part Number	W2C
Dixon Part Number	B2C
Sanitary Solutions Part Number	SS2C
Sanitube Part Number	2C
A, in.	3.718
A, mm.	94.44
Product Weight	1.1

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2C
Wayland Part Number	W2C
Dixon Part Number	B2C
Sanitary Solutions Part Number	SS2C
Sanitube Part Number	2C
A, in.	4.593
A, mm.	116.66
Product Weight	1.9

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2C
Wayland Part Number	W2C
Dixon Part Number	B2C
Sanitary Solutions Part Number	SS2C
Sanitube Part Number	2C
A, in.	5.437
A, mm.	138.1
Product Weight	2.66

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2C
Wayland Part Number	W2C
Dixon Part Number	B2C
Sanitary Solutions Part Number	SS2C
Sanitube Part Number	2C
A, in.	7
A, mm.	177.8
Product Weight	5.02
