E28WA - Weld End 45 Degree Lateral

Material Type
Size

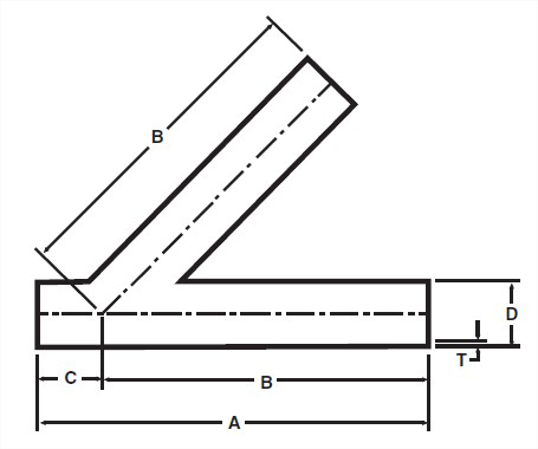

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	D, in.	D, mm.	T Nom Wall, in.	Product Weight
1	6	152.4	5	1	25.4	1	25.4	0.065	0.5
1.5	7.375	187.33	6.187	1.187	30.15	1.5	38.1	0.065	1
2	8.625	219.08	7.125	1.5	38.1	2	50.8	0.065	1.52
2.5	10.125	257.18	8.5	1.625	41.28	2.5	63.5	0.065	2.34
3	10.75	273.05	8.875	1.875	47.63	3	76.2	0.065	2.98
4	12.812	325.42	10.75	2.062	52.37	4	101.6	0.083	6.4
6	18	457.2	14.5	3.5	88.9	6	152.4	0.109	--

	VNE part number
OD Tube Size	304	316L
1	E28WA1.0	E28WA-6L1.0
1.5	E28WA1.5	E28WA-6L1.5
2	E28WA2.0	E28WA-6L2.0
2.5	E28WA2.5	E28WA-6L2.5
3	E28WA3.0	E28WA-6L3.0
4	E28WA4.0	E28WA-6L4.0
6	E28WA6.0	E28WA-6L6.0

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28WA1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WA
Steel O’brien Part Number	28WA-1-7-304
Wayland Part Number	W28WA
Dixon Part Number	B28WA
Sanitary Solutions Part Number	SS28WA
Sanitube Part Number	28WA
A, in.	6
A, mm.	152.4
B, in.	5
C, in.	1
C, mm.	25.4
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.5

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28WA1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WA
Steel O’brien Part Number	28WA-1.5-7-304
Wayland Part Number	W28WA
Dixon Part Number	B28WA
Sanitary Solutions Part Number	SS28WA
Sanitube Part Number	28WA
A, in.	7.375
A, mm.	187.33
B, in.	6.187
C, in.	1.187
C, mm.	30.15
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	1

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28WA2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WA
Steel O’brien Part Number	28WA-2-7-304
Wayland Part Number	W28WA
Dixon Part Number	B28WA
Sanitary Solutions Part Number	SS28WA
Sanitube Part Number	28WA
A, in.	8.625
A, mm.	219.08
B, in.	7.125
C, in.	1.5
C, mm.	38.1
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	1.52

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28WA2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WA
Steel O’brien Part Number	28WA-2.5-7-304
Wayland Part Number	W28WA
Dixon Part Number	B28WA
Sanitary Solutions Part Number	SS28WA
Sanitube Part Number	28WA
A, in.	10.125
A, mm.	257.18
B, in.	8.5
C, in.	1.625
C, mm.	41.28
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	2.34

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28WA3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WA
Steel O’brien Part Number	28WA-3-7-304
Wayland Part Number	W28WA
Dixon Part Number	B28WA
Sanitary Solutions Part Number	SS28WA
Sanitube Part Number	28WA
A, in.	10.75
A, mm.	273.05
B, in.	8.875
C, in.	1.875
C, mm.	47.63
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	2.98

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28WA4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WA
Steel O’brien Part Number	28WA-4-7-304
Wayland Part Number	W28WA
Dixon Part Number	B28WA
Sanitary Solutions Part Number	SS28WA
Sanitube Part Number	28WA
A, in.	12.812
A, mm.	325.42
B, in.	10.75
C, in.	2.062
C, mm.	52.37
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
Product Weight	6.4

Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28WA6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WA
Steel O’brien Part Number	28WA-6-7-304
Wayland Part Number	W28WA
Dixon Part Number	B28WA
Sanitary Solutions Part Number	SS28WA
Sanitube Part Number	28WA
A, in.	18
A, mm.	457.2
B, in.	14.5
C, in.	3.5
C, mm.	88.9
D, in.	6
D, mm.	152.4
T Nom Wall, in.	0.109

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28WA1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WA
Steel O’brien Part Number	28WA-1-7-316
Wayland Part Number	W28WA
Dixon Part Number	B28WA
Sanitary Solutions Part Number	SS28WA
Sanitube Part Number	28WA
A, in.	6
A, mm.	152.4
B, in.	5
C, in.	1
C, mm.	25.4
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.5

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28WA1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WA
Steel O’brien Part Number	28WA-1.5-7-316
Wayland Part Number	W28WA
Dixon Part Number	B28WA
Sanitary Solutions Part Number	SS28WA
Sanitube Part Number	28WA
A, in.	7.375
A, mm.	187.33
B, in.	6.187
C, in.	1.187
C, mm.	30.15
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	1

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28WA2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WA
Steel O’brien Part Number	28WA-2-7-316
Wayland Part Number	W28WA
Dixon Part Number	B28WA
Sanitary Solutions Part Number	SS28WA
Sanitube Part Number	28WA
A, in.	8.625
A, mm.	219.08
B, in.	7.125
C, in.	1.5
C, mm.	38.1
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	1.52

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28WA2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WA
Steel O’brien Part Number	28WA-2.5-7-316
Wayland Part Number	W28WA
Dixon Part Number	B28WA
Sanitary Solutions Part Number	SS28WA
Sanitube Part Number	28WA
A, in.	10.125
A, mm.	257.18
B, in.	8.5
C, in.	1.625
C, mm.	41.28
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	2.34

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28WA3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WA
Steel O’brien Part Number	28WA-3-7-316
Wayland Part Number	W28WA
Dixon Part Number	B28WA
Sanitary Solutions Part Number	SS28WA
Sanitube Part Number	28WA
A, in.	10.75
A, mm.	273.05
B, in.	8.875
C, in.	1.875
C, mm.	47.63
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	2.98

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28WA4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WA
Steel O’brien Part Number	28WA-4-7-316
Wayland Part Number	W28WA
Dixon Part Number	B28WA
Sanitary Solutions Part Number	SS28WA
Sanitube Part Number	28WA
A, in.	12.812
A, mm.	325.42
B, in.	10.75
C, in.	2.062
C, mm.	52.37
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
Product Weight	6.4

Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28WA6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WA
Steel O’brien Part Number	28WA-6-7-316
Wayland Part Number	W28WA
Dixon Part Number	B28WA
Sanitary Solutions Part Number	SS28WA
Sanitube Part Number	28WA
A, in.	18
A, mm.	457.2
B, in.	14.5
C, in.	3.5
C, mm.	88.9
D, in.	6
D, mm.	152.4
T Nom Wall, in.	0.109
