E15WI-5 - Schedule 5 Female E-Line Short Ferrule

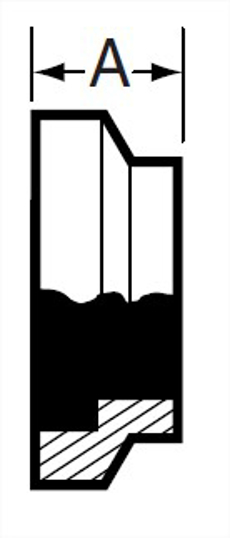

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	D, in.	D, mm.	T Nom Wall, in.	Product Weight
1	1.315	33.4	1.185	2	50.8	0.945	24	0.065	0.195
1.5	1.9	48.26	1.77	2.648	67.26	1.024	26.01	0.065	0.43
2	2.375	60.33	2.245	3.317	84.25	1.142	29.01	0.065	0.664
2.5	2.875	73.03	2.709	3.868	98.25	1.22	30.99	0.083	0.883
3	3.5	88.9	3.334	4.882	124	1.343	34.11	0.083	1.555
4	4.5	114.3	4.334	5.882	149.4	1.343	34.11	0.083	1.883

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Schedule 5 Pipe
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-15WI
Wayland Part Number	W15WI
Dixon Part Number	15WI
Sanitary Solutions Part Number	SS15WI
Sanitube Part Number	15WI
A, in.	1.315
A, mm.	33.4
B, in.	1.185
C, in.	2
C, mm.	50.8
D, in.	0.945
D, mm.	24
T Nom Wall, in.	0.065
Product Weight	0.195

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Schedule 5 Pipe
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-15WI
Wayland Part Number	W15WI
Dixon Part Number	15WI
Sanitary Solutions Part Number	SS15WI
Sanitube Part Number	15WI
A, in.	1.9
A, mm.	48.26
B, in.	1.77
C, in.	2.648
C, mm.	67.26
D, in.	1.024
D, mm.	26.01
T Nom Wall, in.	0.065
Product Weight	0.43

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Schedule 5 Pipe
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-15WI
Wayland Part Number	W15WI
Dixon Part Number	15WI
Sanitary Solutions Part Number	SS15WI
Sanitube Part Number	15WI
A, in.	2.375
A, mm.	60.33
B, in.	2.245
C, in.	3.317
C, mm.	84.25
D, in.	1.142
D, mm.	29.01
T Nom Wall, in.	0.065
Product Weight	0.664

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Schedule 5 Pipe
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-15WI
Wayland Part Number	W15WI
Dixon Part Number	15WI
Sanitary Solutions Part Number	SS15WI
Sanitube Part Number	15WI
A, in.	2.875
A, mm.	73.03
B, in.	2.709
C, in.	3.868
C, mm.	98.25
D, in.	1.22
D, mm.	30.99
T Nom Wall, in.	0.083
Product Weight	0.883

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Schedule 5 Pipe
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-15WI
Wayland Part Number	W15WI
Dixon Part Number	15WI
Sanitary Solutions Part Number	SS15WI
Sanitube Part Number	15WI
A, in.	3.5
A, mm.	88.9
B, in.	3.334
C, in.	4.882
C, mm.	124
D, in.	1.343
D, mm.	34.11
T Nom Wall, in.	0.083
Product Weight	1.555

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Schedule 5 Pipe
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-15WI
Wayland Part Number	W15WI
Dixon Part Number	15WI
Sanitary Solutions Part Number	SS15WI
Sanitube Part Number	15WI
A, in.	4.5
A, mm.	114.3
B, in.	4.334
C, in.	5.882
C, mm.	149.4
D, in.	1.343
D, mm.	34.11
T Nom Wall, in.	0.083
Product Weight	1.883
