EG2CS-10 - Schedule 10 Clamp Ferrule

View Dimensions

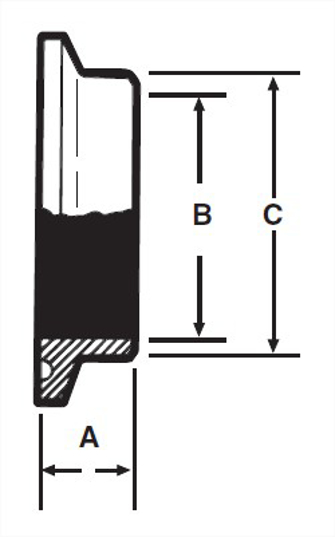

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	D, in.	D, mm.	T Nom Wall, in.
0.5	1.984	50.39	0.674	0.84	21.34	0.5	12.7	0.083
0.75	1.984	50.39	0.884	1.05	26.67	0.5	12.7	0.083
1	1.984	50.39	1.097	1.315	33.4	0.5	12.7	0.109
1.5	2.516	63.91	1.682	1.9	48.26	0.5	12.7	0.109
2	3.047	77.39	2.157	2.375	60.33	0.5	12.7	0.109
2.5	3.579	90.91	2.635	2.875	73.03	0.5	12.7	0.12
3	4.125	104.78	3.26	3.5	88.9	0.5	12.7	0.12
4	5.125	130.18	4.26	4.5	114.3	0.625	15.88	0.12

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Schedule 10 Pipe
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	1.984
A, mm.	50.39
B, in.	1.097
C, in.	1.315
C, mm.	33.4
D, in.	0.5
D, mm.	12.7
T Nom Wall, in.	0.109

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	0.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Schedule 10 Pipe
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	1.984
A, mm.	50.39
B, in.	0.674
C, in.	0.84
C, mm.	21.34
D, in.	0.5
D, mm.	12.7
T Nom Wall, in.	0.083

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Schedule 10 Pipe
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	2.516
A, mm.	63.91
B, in.	1.682
C, in.	1.9
C, mm.	48.26
D, in.	0.5
D, mm.	12.7
T Nom Wall, in.	0.109

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Schedule 10 Pipe
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	3.047
A, mm.	77.39
B, in.	2.157
C, in.	2.375
C, mm.	60.33
D, in.	0.5
D, mm.	12.7
T Nom Wall, in.	0.109

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Schedule 10 Pipe
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	3.579
A, mm.	90.91
B, in.	2.635
C, in.	2.875
C, mm.	73.03
D, in.	0.5
D, mm.	12.7
T Nom Wall, in.	0.12

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Schedule 10 Pipe
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	4.125
A, mm.	104.78
B, in.	3.26
C, in.	3.5
C, mm.	88.9
D, in.	0.5
D, mm.	12.7
T Nom Wall, in.	0.12

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	0.75
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Schedule 10 Pipe
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	1.984
A, mm.	50.39
B, in.	0.884
C, in.	1.05
C, mm.	26.67
D, in.	0.5
D, mm.	12.7
T Nom Wall, in.	0.083

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Schedule 10 Pipe
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP
A, in.	5.125
A, mm.	130.18
B, in.	4.26
C, in.	4.5
C, mm.	114.3
D, in.	0.625
D, mm.	15.88
T Nom Wall, in.	0.12
