14PRJP - Plain John Perry Ferrule Short

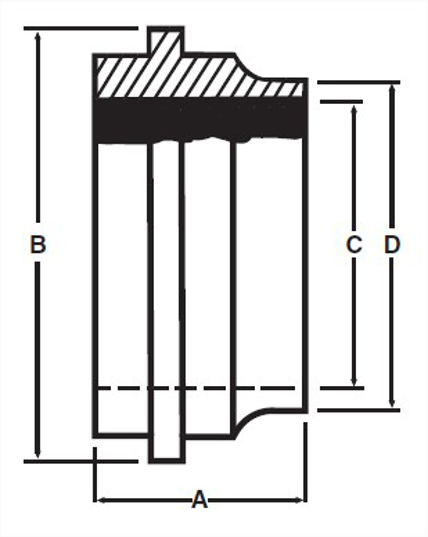

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	D, in.	D, mm.	Product Weight
1	0.643	16.33	1.316	0.87	22.1	1	25.4	0.08
1.5	0.643	16.33	1.848	1.37	34.8	1.5	38.1	0.14
2	0.71	18.03	2.38	1.87	47.5	2	50.8	0.18
2.5	0.807	20.5	2.912	2.37	60.2	2.5	63.5	0.26
3	0.807	20.5	3.444	2.87	72.9	3	76.2	0.34
4	1.009	25.63	4.508	3.824	97.13	4	101.6	0.7

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain John Perry X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14PRJP1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	0.643
A, mm.	16.33
B, in.	1.316
C, in.	0.87
C, mm.	22.1
D, in.	1
D, mm.	25.4
Product Weight	0.08

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain John Perry X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14PRJP1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	0.643
A, mm.	16.33
B, in.	1.848
C, in.	1.37
C, mm.	34.8
D, in.	1.5
D, mm.	38.1
Product Weight	0.14

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain John Perry X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14PRJP2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	0.71
A, mm.	18.03
B, in.	2.38
C, in.	1.87
C, mm.	47.5
D, in.	2
D, mm.	50.8
Product Weight	0.18

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain John Perry X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14PRJP2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	0.807
A, mm.	20.5
B, in.	2.912
C, in.	2.37
C, mm.	60.2
D, in.	2.5
D, mm.	63.5
Product Weight	0.26

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain John Perry X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14PRJP3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	0.807
A, mm.	20.5
B, in.	3.444
C, in.	2.87
C, mm.	72.9
D, in.	3
D, mm.	76.2
Product Weight	0.34

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain John Perry X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14PRJP4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.009
A, mm.	25.63
B, in.	4.508
C, in.	3.824
C, mm.	97.13
D, in.	4
D, mm.	101.6
Product Weight	0.7
