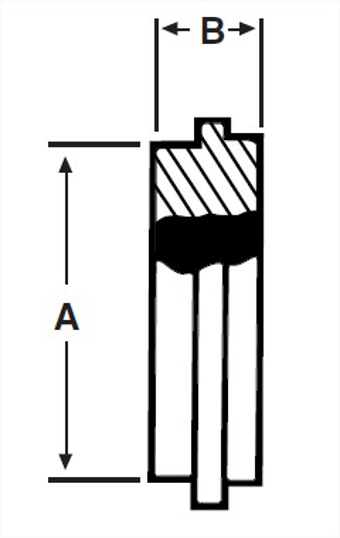

View Dimensions

Dimensions

16AJP - Plain John Perry Cap

OD Tube Size	A, in.	A, mm.	B, in.	Product Weight
1	1.125	28.58	0.468	0.16
1.5	1.656	42.06	0.5	0.34
2	2.187	55.55	0.531	0.7
2.5	2.656	67.46	0.594	0.98
3	3.187	80.95	0.625	1.48
4	4.187	106.35	0.625	3.1

Close

	VNE part number
OD Tube Size	316L
1	16AJP-6L1.0
1.5	16AJP-6L1.5
2	16AJP-6L2.0
2.5	16AJP-6L2.5
3	16AJP-6L3.0
4	16AJP-6L4.0

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain John Perry
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	16AJP1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.125
A, mm.	28.58
B, in.	0.468
Product Weight	0.16

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain John Perry
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	16AJP1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.656
A, mm.	42.06
B, in.	0.5
Product Weight	0.34

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain John Perry
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	16AJP2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.187
A, mm.	55.55
B, in.	0.531
Product Weight	0.7

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain John Perry
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	16AJP2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.656
A, mm.	67.46
B, in.	0.594
Product Weight	0.98

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain John Perry
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	16AJP3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.187
A, mm.	80.95
B, in.	0.625
Product Weight	1.48

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain John Perry
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	16AJP4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.187
A, mm.	106.35
B, in.	0.625
Product Weight	3.1
