E2EI - Male E-Line 90 Degree Elbow

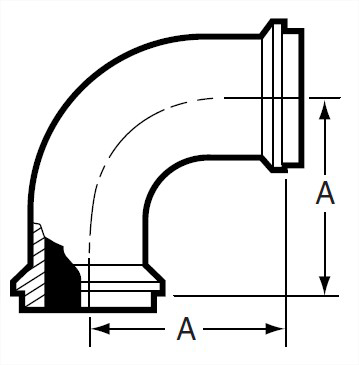

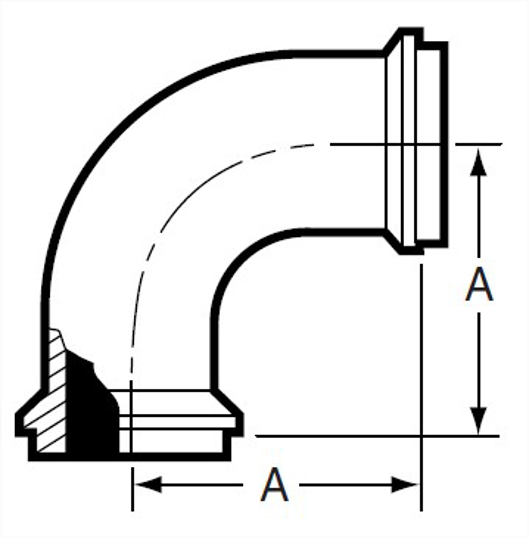

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	Product Weight
1	2.093	53.16	0.67
1.5	3	76.2	0.64
2	3.781	96.04	1.18
2.5	4.593	116.66	1.84
3	5.406	137.31	2.52
4	7.031	178.59	4.85
6	9.187	233.35	--

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2E
Wayland Part Number	W2EI
Dixon Part Number	B2EI
Sanitary Solutions Part Number	SS2EI
Sanitube Part Number	2EI
A, in.	2.093
A, mm.	53.16
Product Weight	0.67

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2E
Wayland Part Number	W2EI
Dixon Part Number	B2EI
Sanitary Solutions Part Number	SS2EI
Sanitube Part Number	2EI
A, in.	3
A, mm.	76.2
Product Weight	0.64

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2E
Wayland Part Number	W2EI
Dixon Part Number	B2EI
Sanitary Solutions Part Number	SS2EI
Sanitube Part Number	2EI
A, in.	3.781
A, mm.	96.04
Product Weight	1.18

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2E
Wayland Part Number	W2EI
Dixon Part Number	B2EI
Sanitary Solutions Part Number	SS2EI
Sanitube Part Number	2EI
A, in.	4.593
A, mm.	116.66
Product Weight	1.84

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2E
Wayland Part Number	W2EI
Dixon Part Number	B2EI
Sanitary Solutions Part Number	SS2EI
Sanitube Part Number	2EI
A, in.	5.406
A, mm.	137.31
Product Weight	2.52

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2E
Wayland Part Number	W2EI
Dixon Part Number	B2EI
Sanitary Solutions Part Number	SS2EI
Sanitube Part Number	2EI
A, in.	7.031
A, mm.	178.59
Product Weight	4.85

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2E
Wayland Part Number	W2EI
Dixon Part Number	B2EI
Sanitary Solutions Part Number	SS2EI
Sanitube Part Number	2EI
A, in.	9.187
A, mm.	233.35

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2E
Wayland Part Number	W2EI
Dixon Part Number	B2EI
Sanitary Solutions Part Number	SS2EI
Sanitube Part Number	2EI
A, in.	2.093
A, mm.	53.16
Product Weight	0.67

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2E
Wayland Part Number	W2EI
Dixon Part Number	B2EI
Sanitary Solutions Part Number	SS2EI
Sanitube Part Number	2EI
A, in.	3
A, mm.	76.2
Product Weight	0.64

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2E
Wayland Part Number	W2EI
Dixon Part Number	B2EI
Sanitary Solutions Part Number	SS2EI
Sanitube Part Number	2EI
A, in.	3.781
A, mm.	96.04
Product Weight	1.18

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2E
Wayland Part Number	W2EI
Dixon Part Number	B2EI
Sanitary Solutions Part Number	SS2EI
Sanitube Part Number	2EI
A, in.	4.593
A, mm.	116.66
Product Weight	1.84

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2E
Wayland Part Number	W2EI
Dixon Part Number	B2EI
Sanitary Solutions Part Number	SS2EI
Sanitube Part Number	2EI
A, in.	5.406
A, mm.	137.31
Product Weight	2.52

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2E
Wayland Part Number	W2EI
Dixon Part Number	B2EI
Sanitary Solutions Part Number	SS2EI
Sanitube Part Number	2EI
A, in.	7.031
A, mm.	178.59
Product Weight	4.85

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Male E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-2E
Wayland Part Number	W2EI
Dixon Part Number	B2EI
Sanitary Solutions Part Number	SS2EI
Sanitube Part Number	2EI
A, in.	9.187
A, mm.	233.35
