14AJP - Plain John Perry Ferrule Medium

14AJP - Plain John Perry Ferrule Medium

Material Type
Size

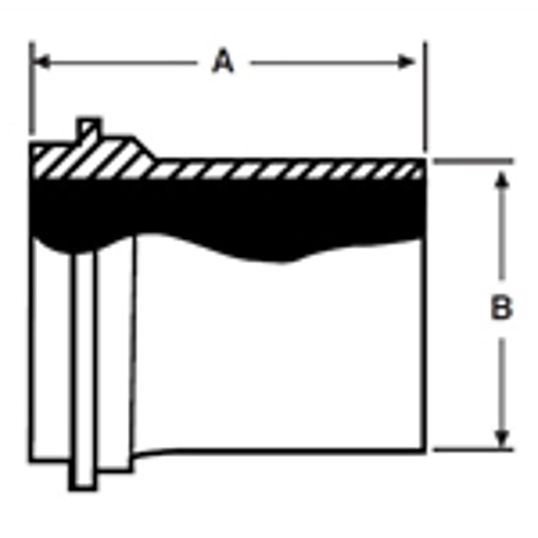

View Dimensions

Dimensions

14AJP - Plain John Perry Ferrule Medium

OD Tube Size	A, in.	A, mm.	B, in.
1	1.375	34.93	1
1.5	1.5	38.1	1.5
2	1.5	38.1	2
2.5	1.75	44.45	2.5
3	1.75	44.45	3
4	1.75	44.45	4

Close

	VNE part number
OD Tube Size	316L
1	14AJP-6L1.0
1.5	14AJP-6L1.5
2	14AJP-6L2.0
2.5	14AJP-6L2.5
3	14AJP-6L3.0
4	14AJP-6L4.0

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain John Perry X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14AJP1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.375
A, mm.	34.93
B, in.	1

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain John Perry X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14AJP1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.5
A, mm.	38.1
B, in.	1.5

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain John Perry X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14AJP2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.5
A, mm.	38.1
B, in.	2

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain John Perry X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14AJP2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.75
A, mm.	44.45
B, in.	2.5

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain John Perry X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14AJP3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.75
A, mm.	44.45
B, in.	3

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain John Perry X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14AJP4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.75
A, mm.	44.45
B, in.	4
