E14WA - Weld Lap Joint Stub End

E14WA - Weld Lap Joint Stub End

Material Type
Size

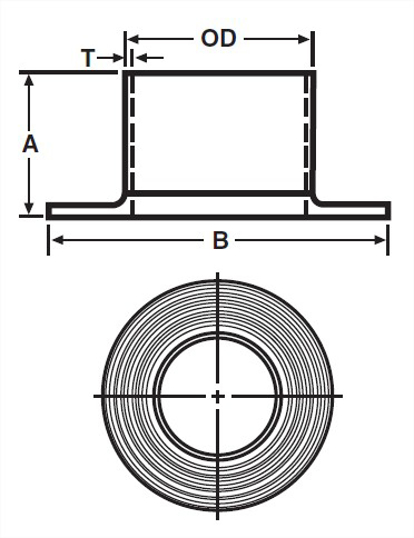

View Dimensions

Dimensions

E14WA - Weld Lap Joint Stub End

OD Tube Size	A, in.	A, mm.	B, in.	T Nom Wall, in.
0.5	1.375	34.93	1.625	0.065
0.75	1.375	34.93	1.687	0.065
1	1.625	41.28	2	0.065
1.25	1.625	41.28	2.5	0.065
1.5	1.75	44.45	2.875	0.065
2	1.5	38.1	3.625	0.065
2.5	2	50.8	4.125	0.065
3	2.25	57.15	5	0.065
4	2.625	66.68	6.187	0.083
6	3	76.2	8.5	0.109

Close

	VNE part number
OD Tube Size	316L
0.5	E14WA-6L.5
0.75	E14WA-6L.75
1	E14WA-6L1.0
1.25	E14WA-6L1.25
1.5	E14WA-6L1.5
2	E14WA-6L2.0
2.5	E14WA-6L2.5
3	E14WA-6L3.0
4	E14WA-6L4.0
6	E14WA-6L6.0

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	0.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Stub End X Weld
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	1.375
A, mm.	34.93
B, in.	1.625
T Nom Wall, in.	0.065

Material Type	316L
Size	0.75
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Stub End X Weld
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E14WA.75.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.375
A, mm.	34.93
B, in.	1.687
T Nom Wall, in.	0.065

Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Stub End X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E14WA1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.625
A, mm.	41.28
B, in.	2
T Nom Wall, in.	0.065

Material Type	316L
Size	1.25
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Stub End X Weld
OD Tube Size	1.25
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E14WA1.25.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.625
A, mm.	41.28
B, in.	2.5
T Nom Wall, in.	0.065

Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Stub End X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E14WA1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.75
A, mm.	44.45
B, in.	2.875
T Nom Wall, in.	0.065

Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Stub End X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E14WA2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.5
A, mm.	38.1
B, in.	3.625
T Nom Wall, in.	0.065

Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Stub End X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E14WA2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2
A, mm.	50.8
B, in.	4.125
T Nom Wall, in.	0.065

Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Stub End X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E14WA3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.25
A, mm.	57.15
B, in.	5
T Nom Wall, in.	0.065

Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Stub End X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E14WA4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.625
A, mm.	66.68
B, in.	6.187
T Nom Wall, in.	0.083

Material Type	316L
Size	6
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Stub End X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E14WA6.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3
A, mm.	76.2
B, in.	8.5
T Nom Wall, in.	0.109

Click here to request 3D Step File
