E2C - Weld X Clamp 90 Degree Elbow

Material Type
Size

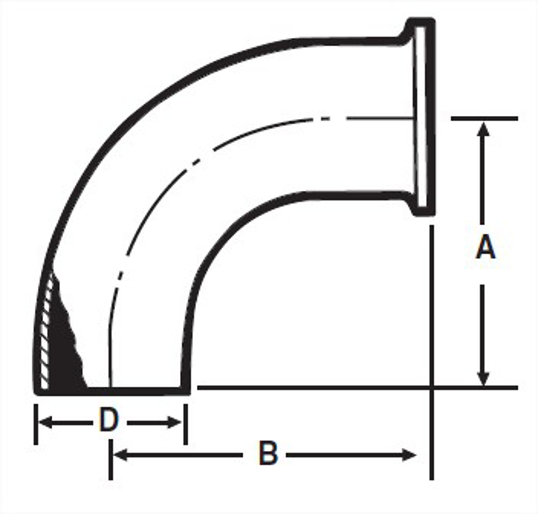

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	D, in.	D, mm.	T Nom Wall, in.	Product Weight
1	2.062	52.37	2.562	1	25.4	0.065	0.34
1.5	2.935	74.55	3.437	1.5	38.1	0.065	0.5
2	4.062	103.17	4.562	2	50.8	0.065	0.96
2.5	5.187	131.75	5.687	2.5	63.5	0.065	1.26
3	6.312	160.32	6.812	3	76.2	0.065	1.98
4	8.312	211.12	8.937	4	101.6	0.083	4.36
6	9	228.6	9.875	6	152.4	0.109	--

	VNE part number
OD Tube Size	304	316L
1	E2C1.0	E2C-6L1.0
1.5	E2C1.5	E2C-6L1.5
2	E2C2.0	E2C-6L2.0
2.5	E2C2.5	E2C-6L2.5
3	E2C3.0	E2C-6L3.0
4	E2C4.0	E2C-6L4.0
6	E2C6.0	E2C-6L6.0

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2C1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2CM
Steel O’brien Part Number	L2CM-1-7-304
Wayland Part Number	WL2CM
Dixon Part Number	B2CM
Sanitary Solutions Part Number	SS2CM
Sanitube Part Number	L2CM
A, in.	2.062
A, mm.	52.37
B, in.	2.562
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.34

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2C1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2CM
Steel O’brien Part Number	L2CM-1.5-7-304
Wayland Part Number	WL2CM
Dixon Part Number	B2CM
Sanitary Solutions Part Number	SS2CM
Sanitube Part Number	L2CM
A, in.	2.935
A, mm.	74.55
B, in.	3.437
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.5

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2C2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2CM
Steel O’brien Part Number	L2CM-2-7-304
Wayland Part Number	WL2CM
Dixon Part Number	B2CM
Sanitary Solutions Part Number	SS2CM
Sanitube Part Number	L2CM
A, in.	4.062
A, mm.	103.17
B, in.	4.562
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	0.96

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2C2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2CM
Steel O’brien Part Number	L2CM-2.5-7-304
Wayland Part Number	WL2CM
Dixon Part Number	B2CM
Sanitary Solutions Part Number	SS2CM
Sanitube Part Number	L2CM
A, in.	5.187
A, mm.	131.75
B, in.	5.687
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	1.26

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2C3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2CM
Steel O’brien Part Number	L2CM-3-7-304
Wayland Part Number	WL2CM
Dixon Part Number	B2CM
Sanitary Solutions Part Number	SS2CM
Sanitube Part Number	L2CM
A, in.	6.312
A, mm.	160.32
B, in.	6.812
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	1.98

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2C4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2CM
Steel O’brien Part Number	L2CM-4-7-304
Wayland Part Number	WL2CM
Dixon Part Number	B2CM
Sanitary Solutions Part Number	SS2CM
Sanitube Part Number	L2CM
A, in.	8.312
A, mm.	211.12
B, in.	8.937
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
Product Weight	4.36

Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2C6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2CM
Steel O’brien Part Number	L2CM-6-7-304
Wayland Part Number	WL2CM
Dixon Part Number	B2CM
Sanitary Solutions Part Number	SS2CM
Sanitube Part Number	L2CM
A, in.	9
A, mm.	228.6
B, in.	9.875
D, in.	6
D, mm.	152.4
T Nom Wall, in.	0.109

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2C1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2CM
Steel O’brien Part Number	L2CM-1-7-316
Wayland Part Number	WL2CM
Dixon Part Number	B2CM
Sanitary Solutions Part Number	SS2CM
Sanitube Part Number	L2CM
A, in.	2.062
A, mm.	52.37
B, in.	2.562
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.34

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2C1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2CM
Steel O’brien Part Number	L2CM-1.5-7-316
Wayland Part Number	WL2CM
Dixon Part Number	B2CM
Sanitary Solutions Part Number	SS2CM
Sanitube Part Number	L2CM
A, in.	2.935
A, mm.	74.55
B, in.	3.437
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.5

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2C2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2CM
Steel O’brien Part Number	L2CM-2-7-316
Wayland Part Number	WL2CM
Dixon Part Number	B2CM
Sanitary Solutions Part Number	SS2CM
Sanitube Part Number	L2CM
A, in.	4.062
A, mm.	103.17
B, in.	4.562
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	0.96

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2C2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2CM
Steel O’brien Part Number	L2CM-2.5-7-316
Wayland Part Number	WL2CM
Dixon Part Number	B2CM
Sanitary Solutions Part Number	SS2CM
Sanitube Part Number	L2CM
A, in.	5.187
A, mm.	131.75
B, in.	5.687
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	1.26

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2C3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2CM
Steel O’brien Part Number	L2CM-3-7-316
Wayland Part Number	WL2CM
Dixon Part Number	B2CM
Sanitary Solutions Part Number	SS2CM
Sanitube Part Number	L2CM
A, in.	6.312
A, mm.	160.32
B, in.	6.812
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	1.98

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2C4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2CM
Steel O’brien Part Number	L2CM-4-7-316
Wayland Part Number	WL2CM
Dixon Part Number	B2CM
Sanitary Solutions Part Number	SS2CM
Sanitube Part Number	L2CM
A, in.	8.312
A, mm.	211.12
B, in.	8.937
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
Product Weight	4.36

Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2C6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2CM
Steel O’brien Part Number	L2CM-6-7-316
Wayland Part Number	WL2CM
Dixon Part Number	B2CM
Sanitary Solutions Part Number	SS2CM
Sanitube Part Number	L2CM
A, in.	9
A, mm.	228.6
B, in.	9.875
D, in.	6
D, mm.	152.4
T Nom Wall, in.	0.109
