Din 11851 Seal Ring

Din 11851 Seal Ring

Material Type
Size

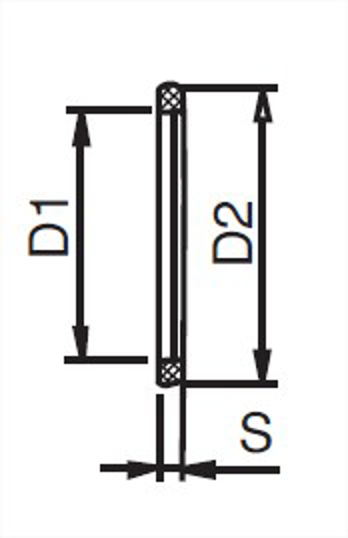

View Dimensions

Dimensions

Din 11851 Seal Ring

OD Tube Size	D1, in.	D1, mm.	D2, in.	D2, mm.	S, in.	S, mm.	Product Weight
DN10	0.47	12	0.79	20	0.18	4.5	0.01
DN15	0.71	18	1.02	26	0.18	4.5	0.01
DN20	0.91	23	1.3	33	0.18	4.5	0.01
DN25	1.18	30	1.57	40	0.2	5	0.01
DN32	1.42	36	1.81	46	0.2	5	0.01
DN40	1.65	42	2.05	52	0.2	5	0.01
DN50	2.13	54	2.52	64	0.2	5	0.01
DN65	2.8	71	3.19	81	0.2	5	0.01
DN75	3.07	78	3.46	88	0.2	5	--
DN80	3.35	85	3.74	95	0.2	5	0.01
DN100	4.09	104	4.49	114	0.24	6	0.01
DN125	5.12	130	5.59	142	0.28	7	--
DN150	6.1	155	6.57	167	0.28	7	--

Close

	VNE part number
OD Tube Size	Buna	EPDM	Silicone
DN10	5-RING NW10	5A-RING NW10	5B-RING NW10
DN15	5-RING NW15	5A-RING NW15	5B-RING NW15
DN20	5-RING NW20	5A-RING NW20	5B-RING NW20
DN25	5-RING NW25	5A-RING NW25	5B-RING NW25
DN32	5-RING NW32	5A-RING NW32	5B-RING NW32
DN40	5-RING NW40	5A-RING NW40	5B-RING NW40
DN50	5-RING NW50	5A-RING NW50	5B-RING NW50
DN65	5-RING NW65	5A-RING NW65	5B-RING NW65
DN75	5-RING NW75/3	5A-RING NW75/3	5B-RING NW75/3
DN80	5-RING NW80	5A-RING NW80	5B-RING NW80
DN100	5-RING NW100	5A-RING NW100	5B-RING NW100
DN125	5-RING NW125	5A-RING NW125	5B-RING NW125
DN150	5-RING NW150	5A-RING NW150	5B-RING NW150

Cad Model File	Click here to request 3D Step File
Material Type	EPDM
Size	DN10
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN10
Material-Type	EPDM
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	0.47
D1, mm.	12
D2, in.	0.79
D2, mm.	20
S, in.	0.18
S, mm.	4.5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	EPDM
Size	DN15
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN15
Material-Type	EPDM
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	0.71
D1, mm.	18
D2, in.	1.02
D2, mm.	26
S, in.	0.18
S, mm.	4.5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	EPDM
Size	DN20
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN20
Material-Type	EPDM
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	0.91
D1, mm.	23
D2, in.	1.3
D2, mm.	33
S, in.	0.18
S, mm.	4.5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	EPDM
Size	DN25
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN25
Material-Type	EPDM
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	1.18
D1, mm.	30
D2, in.	1.57
D2, mm.	40
S, in.	0.2
S, mm.	5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	EPDM
Size	DN32
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN32
Material-Type	EPDM
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	1.42
D1, mm.	36
D2, in.	1.81
D2, mm.	46
S, in.	0.2
S, mm.	5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	EPDM
Size	DN40
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN40
Material-Type	EPDM
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	1.65
D1, mm.	42
D2, in.	2.05
D2, mm.	52
S, in.	0.2
S, mm.	5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	EPDM
Size	DN50
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN50
Material-Type	EPDM
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	2.13
D1, mm.	54
D2, in.	2.52
D2, mm.	64
S, in.	0.2
S, mm.	5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	EPDM
Size	DN65
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN65
Material-Type	EPDM
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	2.8
D1, mm.	71
D2, in.	3.19
D2, mm.	81
S, in.	0.2
S, mm.	5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	EPDM
Size	DN75
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN75
Material-Type	EPDM
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	3.07
D1, mm.	78
D2, in.	3.46
D2, mm.	88
S, in.	0.2
S, mm.	5

Cad Model File	Click here to request 3D Step File
Material Type	EPDM
Size	DN80
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN80
Material-Type	EPDM
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	3.35
D1, mm.	85
D2, in.	3.74
D2, mm.	95
S, in.	0.2
S, mm.	5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	EPDM
Size	DN100
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN100
Material-Type	EPDM
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	4.09
D1, mm.	104
D2, in.	4.49
D2, mm.	114
S, in.	0.24
S, mm.	6
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	EPDM
Size	DN125
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN125
Material-Type	EPDM
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	5.12
D1, mm.	130
D2, in.	5.59
D2, mm.	142
S, in.	0.28
S, mm.	7

Cad Model File	Click here to request 3D Step File
Material Type	EPDM
Size	DN150
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN150
Material-Type	EPDM
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	6.1
D1, mm.	155
D2, in.	6.57
D2, mm.	167
S, in.	0.28
S, mm.	7

Cad Model File	Click here to request 3D Step File
Material Type	Buna
Size	DN10
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN10
Material-Type	Buna
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	0.47
D1, mm.	12
D2, in.	0.79
D2, mm.	20
S, in.	0.18
S, mm.	4.5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	Buna
Size	DN15
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN15
Material-Type	Buna
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	0.71
D1, mm.	18
D2, in.	1.02
D2, mm.	26
S, in.	0.18
S, mm.	4.5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	Buna
Size	DN20
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN20
Material-Type	Buna
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	0.91
D1, mm.	23
D2, in.	1.3
D2, mm.	33
S, in.	0.18
S, mm.	4.5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	Buna
Size	DN25
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN25
Material-Type	Buna
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	1.18
D1, mm.	30
D2, in.	1.57
D2, mm.	40
S, in.	0.2
S, mm.	5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	Buna
Size	DN32
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN32
Material-Type	Buna
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	1.42
D1, mm.	36
D2, in.	1.81
D2, mm.	46
S, in.	0.2
S, mm.	5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	Buna
Size	DN40
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN40
Material-Type	Buna
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	1.65
D1, mm.	42
D2, in.	2.05
D2, mm.	52
S, in.	0.2
S, mm.	5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	Buna
Size	DN50
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN50
Material-Type	Buna
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	2.13
D1, mm.	54
D2, in.	2.52
D2, mm.	64
S, in.	0.2
S, mm.	5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	Buna
Size	DN65
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN65
Material-Type	Buna
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	2.8
D1, mm.	71
D2, in.	3.19
D2, mm.	81
S, in.	0.2
S, mm.	5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	Buna
Size	DN75
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN75
Material-Type	Buna
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	3.07
D1, mm.	78
D2, in.	3.46
D2, mm.	88
S, in.	0.2
S, mm.	5

Cad Model File	Click here to request 3D Step File
Material Type	Buna
Size	DN80
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN80
Material-Type	Buna
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	3.35
D1, mm.	85
D2, in.	3.74
D2, mm.	95
S, in.	0.2
S, mm.	5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	Buna
Size	DN100
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN100
Material-Type	Buna
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	4.09
D1, mm.	104
D2, in.	4.49
D2, mm.	114
S, in.	0.24
S, mm.	6
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	Buna
Size	DN125
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN125
Material-Type	Buna
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	5.12
D1, mm.	130
D2, in.	5.59
D2, mm.	142
S, in.	0.28
S, mm.	7

Cad Model File	Click here to request 3D Step File
Material Type	Buna
Size	DN150
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN150
Material-Type	Buna
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	6.1
D1, mm.	155
D2, in.	6.57
D2, mm.	167
S, in.	0.28
S, mm.	7

Cad Model File	Click here to request 3D Step File
Material Type	Silicone
Size	DN10
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN10
Material-Type	Silicone
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	0.47
D1, mm.	12
D2, in.	0.79
D2, mm.	20
S, in.	0.18
S, mm.	4.5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	Silicone
Size	DN15
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN15
Material-Type	Silicone
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	0.71
D1, mm.	18
D2, in.	1.02
D2, mm.	26
S, in.	0.18
S, mm.	4.5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	Silicone
Size	DN20
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN20
Material-Type	Silicone
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	0.91
D1, mm.	23
D2, in.	1.3
D2, mm.	33
S, in.	0.18
S, mm.	4.5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	Silicone
Size	DN25
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN25
Material-Type	Silicone
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	1.18
D1, mm.	30
D2, in.	1.57
D2, mm.	40
S, in.	0.2
S, mm.	5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	Silicone
Size	DN32
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN32
Material-Type	Silicone
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	1.42
D1, mm.	36
D2, in.	1.81
D2, mm.	46
S, in.	0.2
S, mm.	5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	Silicone
Size	DN40
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN40
Material-Type	Silicone
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	1.65
D1, mm.	42
D2, in.	2.05
D2, mm.	52
S, in.	0.2
S, mm.	5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	Silicone
Size	DN50
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN50
Material-Type	Silicone
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	2.13
D1, mm.	54
D2, in.	2.52
D2, mm.	64
S, in.	0.2
S, mm.	5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	Silicone
Size	DN65
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN65
Material-Type	Silicone
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	2.8
D1, mm.	71
D2, in.	3.19
D2, mm.	81
S, in.	0.2
S, mm.	5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	Silicone
Size	DN75
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN75
Material-Type	Silicone
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	3.07
D1, mm.	78
D2, in.	3.46
D2, mm.	88
S, in.	0.2
S, mm.	5

Cad Model File	Click here to request 3D Step File
Material Type	Silicone
Size	DN80
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN80
Material-Type	Silicone
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	3.35
D1, mm.	85
D2, in.	3.74
D2, mm.	95
S, in.	0.2
S, mm.	5
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	Silicone
Size	DN100
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN100
Material-Type	Silicone
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	4.09
D1, mm.	104
D2, in.	4.49
D2, mm.	114
S, in.	0.24
S, mm.	6
Product Weight	0.01

Cad Model File	Click here to request 3D Step File
Material Type	Silicone
Size	DN125
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN125
Material-Type	Silicone
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	5.12
D1, mm.	130
D2, in.	5.59
D2, mm.	142
S, in.	0.28
S, mm.	7

Cad Model File	Click here to request 3D Step File
Material Type	Silicone
Size	DN150
Industry Standard	Din 11851;Din 11853
Connections	Din 11851 Gasket
OD Tube Size	DN150
Material-Type	Silicone
Country of Origin	Germany
Material Test Reports	FDA COC Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	6.1
D1, mm.	155
D2, in.	6.57
D2, mm.	167
S, in.	0.28
S, mm.	7

Click here to request 3D Step File

Visit Neumo Ehrenberg Group

Questions? Call Toll Free: 1.800.356.1111

1149 Barberry Dr | PO Box 1698 | Janesville, WI 53547
Stainless@vnecorp.com | 608-756-4930
