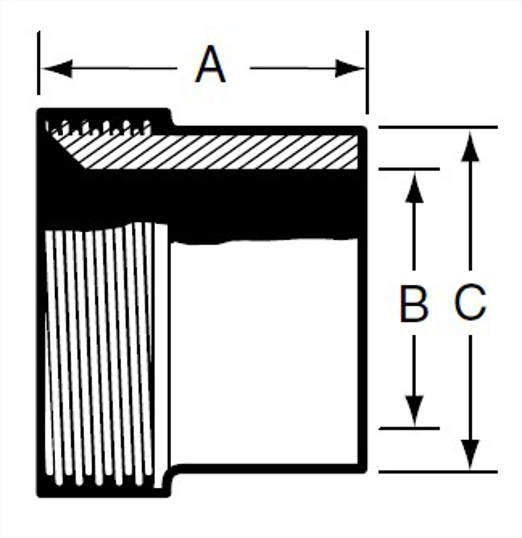

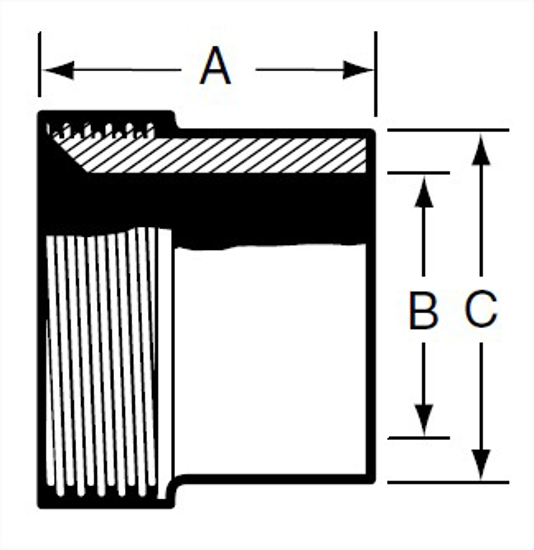

OD Tube Size | A, in. | A, mm. | B, in. | C, in. | C, mm. | Product Weight |
---|---|---|---|---|---|---|
1 |
|
|
|
|
|
|
1.5 |
|
|
|
|
|
|
2 |
|
|
|
|
|
|
2.5 |
|
|
|
|
|
|
3 |
|
|
|
|
|
|
4 |
|
|
|
|
|
|
Material Type | 304 |
Size | 1 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Plain Bevel Seat X Weld |
OD Tube Size | 1 |
Wall Thickness | 0.065 |
Material-Type | 304 |
Material Test Reports | COC Available for 304 Materials |
Passivated | Special Request |
Cad Model File | 15W1.0.STEP |
Catalog File | Fittings Catalog.pdf |
A, in. | 1.5 |
A, mm. | 38.1 |
B, in. | 0.87 |
C, in. | 1.25 |
C, mm. | 31.75 |
Product Weight | 0.3 |
Material Type | 304 |
Size | 1.5 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Plain Bevel Seat X Weld |
OD Tube Size | 1.5 |
Wall Thickness | 0.065 |
Material-Type | 304 |
Material Test Reports | COC Available for 304 Materials |
Passivated | Special Request |
Cad Model File | 15W1.5.STEP |
Catalog File | Fittings Catalog.pdf |
A, in. | 1.625 |
A, mm. | 41.28 |
B, in. | 1.37 |
C, in. | 1.75 |
C, mm. | 44.45 |
Product Weight | 0.46 |
Material Type | 304 |
Size | 2 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Plain Bevel Seat X Weld |
OD Tube Size | 2 |
Wall Thickness | 0.065 |
Material-Type | 304 |
Material Test Reports | COC Available for 304 Materials |
Passivated | Special Request |
Cad Model File | 15W2.0.STEP |
Catalog File | Fittings Catalog.pdf |
A, in. | 1.75 |
A, mm. | 44.45 |
B, in. | 1.87 |
C, in. | 2.312 |
C, mm. | 58.72 |
Product Weight | 0.76 |
Material Type | 304 |
Size | 2.5 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Plain Bevel Seat X Weld |
OD Tube Size | 2.5 |
Wall Thickness | 0.065 |
Material-Type | 304 |
Material Test Reports | COC Available for 304 Materials |
Passivated | Special Request |
Cad Model File | 15W2.5.STEP |
Catalog File | Fittings Catalog.pdf |
A, in. | 1.75 |
A, mm. | 44.45 |
B, in. | 2.37 |
C, in. | 2.875 |
C, mm. | 73.03 |
Product Weight | 0.46 |
Material Type | 304 |
Size | 3 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Plain Bevel Seat X Weld |
OD Tube Size | 3 |
Wall Thickness | 0.065 |
Material-Type | 304 |
Material Test Reports | COC Available for 304 Materials |
Passivated | Special Request |
Cad Model File | 15W3.0.STEP |
Catalog File | Fittings Catalog.pdf |
A, in. | 1.812 |
A, mm. | 46.02 |
B, in. | 2.87 |
C, in. | 3.375 |
C, mm. | 85.73 |
Product Weight | 1.34 |
Material Type | 304 |
Size | 4 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Plain Bevel Seat X Weld |
OD Tube Size | 4 |
Wall Thickness | 0.083 |
Material-Type | 304 |
Material Test Reports | COC Available for 304 Materials |
Passivated | Special Request |
Cad Model File | 15W4.0.STEP |
Catalog File | Fittings Catalog.pdf |
A, in. | 2.125 |
A, mm. | 53.98 |
B, in. | 3.834 |
C, in. | 4.25 |
C, mm. | 107.95 |
Product Weight | 2.04 |
Material Type | 316L |
Size | 1 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Plain Bevel Seat X Weld |
OD Tube Size | 1 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Cad Model File | 15W1.0.STEP |
Catalog File | Fittings Catalog.pdf |
A, in. | 1.5 |
A, mm. | 38.1 |
B, in. | 0.87 |
C, in. | 1.25 |
C, mm. | 31.75 |
Material Type | 316L |
Size | 1.5 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Plain Bevel Seat X Weld |
OD Tube Size | 1.5 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Cad Model File | 15W1.5.STEP |
Catalog File | Fittings Catalog.pdf |
A, in. | 1.625 |
A, mm. | 41.28 |
B, in. | 1.37 |
C, in. | 1.75 |
C, mm. | 44.45 |
Material Type | 316L |
Size | 2 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Plain Bevel Seat X Weld |
OD Tube Size | 2 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Cad Model File | 15W2.0.STEP |
Catalog File | Fittings Catalog.pdf |
A, in. | 1.75 |
A, mm. | 44.45 |
B, in. | 1.87 |
C, in. | 2.312 |
C, mm. | 58.72 |
Material Type | 316L |
Size | 2.5 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Plain Bevel Seat X Weld |
OD Tube Size | 2.5 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Cad Model File | 15W2.5.STEP |
Catalog File | Fittings Catalog.pdf |
A, in. | 1.75 |
A, mm. | 44.45 |
B, in. | 2.37 |
C, in. | 2.875 |
C, mm. | 73.03 |
Material Type | 316L |
Size | 3 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Plain Bevel Seat X Weld |
OD Tube Size | 3 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Cad Model File | 15W3.0.STEP |
Catalog File | Fittings Catalog.pdf |
A, in. | 1.812 |
A, mm. | 46.02 |
B, in. | 2.87 |
C, in. | 3.375 |
C, mm. | 85.73 |
Material Type | 316L |
Size | 4 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Plain Bevel Seat X Weld |
OD Tube Size | 4 |
Wall Thickness | 0.083 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Cad Model File | 15W4.0.STEP |
Catalog File | Fittings Catalog.pdf |
A, in. | 2.125 |
A, mm. | 53.98 |
B, in. | 3.834 |
C, in. | 4.25 |
C, mm. | 107.95 |
