CLAMP FERRULE LONG T304 3A

Attribute name	Attribute value
Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14AM71.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14AM7
Steel O’brien Part Number	L14AM7-1-304
Wayland Part Number	W14AM7
Dixon Part Number	L14AM7
Sanitary Solutions Part Number	SSL14AM7
Sanitube Part Number	14AM7

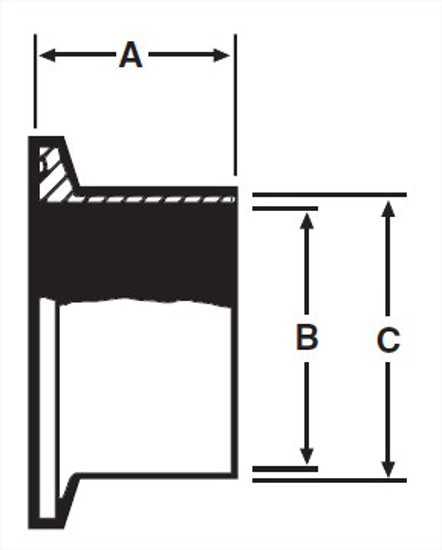

A, in.	1.125
A, mm.	28.58
B, in.	0.87
C, in.	1
C, mm.	25.4
Product Weight	0.18

Material Type

304

Industry Standard

3A

Connections

Clamp X Weld

Wall Thickness

0.065

Material Test Reports

COC Available for 304 Materials

Pressure Rating

See PSI Service Ratings for Clamps

Cad Model File

EG14AM71.0.STEP

Alfa Laval Part Number

L14AM7

Wayland Part Number

W14AM7

Sanitary Solutions Part Number

SSL14AM7

A, in.

1.125

B, in.

0.87

C, mm.

25.4
