ADAPTER CLAMP X FNPT T316L #7

Attribute name	Attribute value
Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Female NPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG221.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	22MP
Steel O’brien Part Number	22MP-1.5-316
Wayland Part Number	W22MP
Dixon Part Number	22MP
Sanitary Solutions Part Number	SS22MP
Sanitube Part Number	22MP

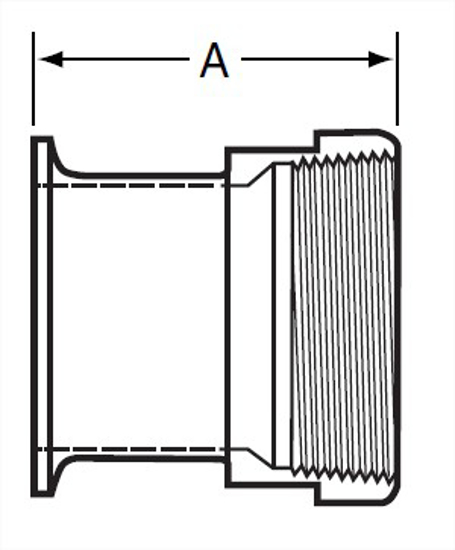

A, in.	2.562
A, mm.	65.07
Product Weight	0.7

Size

1.5

Connections

Clamp X Female NPT

Wall Thickness

0.065

Material Test Reports

MTR’s Available Upon Request

Pressure Rating

See PSI Service Ratings for Clamps

Cad Model File

EG221.5.STEP

Alfa Laval Part Number

22MP

Wayland Part Number

W22MP

Sanitary Solutions Part Number

SS22MP

A, in.

2.562

Product Weight

0.7
