ELBOW 90 DEGREE WELD W/TANGENTS T316L #7 3A

Attribute name	Attribute value
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2S1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2S
Steel O’brien Part Number	L2S-1.5-7-316
Wayland Part Number	WL2S
Dixon Part Number	B2S
Sanitary Solutions Part Number	SS2S
Sanitube Part Number	L2S

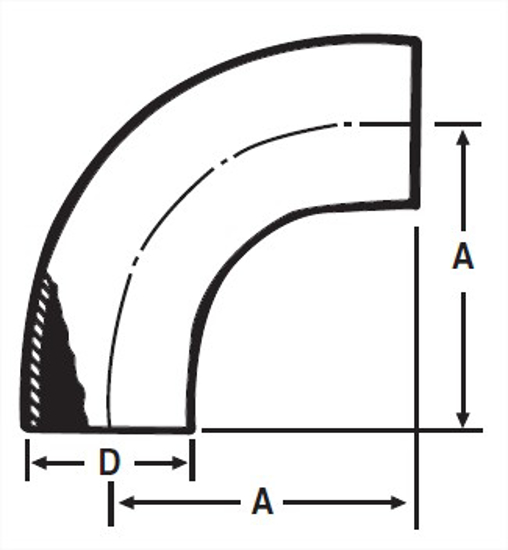

A, in.	2.937
A, mm.	74.6
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.4

Material Type

316L

Industry Standard

3A

Connections

Weld X Weld

Wall Thickness

0.065

Material Test Reports

MTR’s Available Upon Request

Cad Model File

E2S1.5.STEP

Alfa Laval Part Number

L2S

Wayland Part Number

WL2S

Sanitary Solutions Part Number

SS2S

A, in.

2.937

D, in.

1.5

T Nom Wall, in.

0.065
