TRANSITION PC 2.0 TUBE X 2.0 SCH40 T316L MACHINE FINISH

Attribute name	Attribute value
Material Type	316L
Size	2
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf

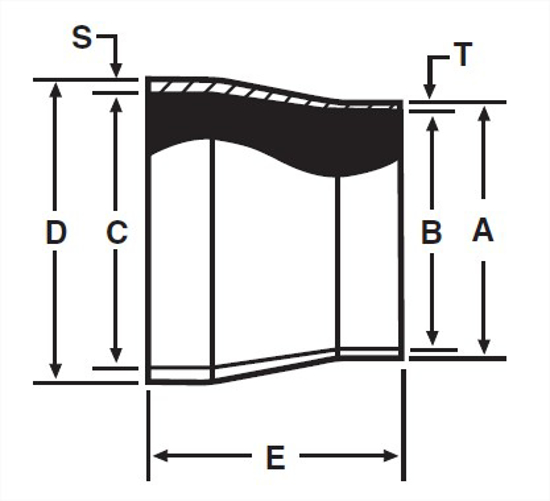

A, in.	2
A, mm.	50.8
B, in.	1.87
C, in.	2.067
C, mm.	52.5
D, in.	2.375
D, mm.	60.33
E, in.	1.5
E, mm.	38.1
S, in.	0.154
S, mm.	3.91
T Nom Wall, in.	0.065
Product Weight	0.336
