REDUCING TEE WELD T316L #7 3A

Attribute name	Attribute value
Material Type	316L
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWW1.5X1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7RWWW
Steel O’brien Part Number	7RWWW-1.5X1-7-316
Wayland Part Number	W7RWWW
Dixon Part Number	B7RWWW
Sanitary Solutions Part Number	SS7RWWW
Sanitube Part Number	7WRT

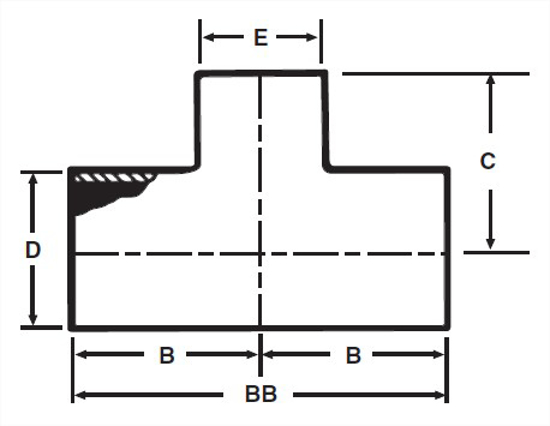

B, in.	1.65
C, in.	1.375
C, mm.	34.93
T Nom Wall, in.	0.065
BB, in.	3.312
BB, mm.	84.12
