HEAVY DUTY CLAMP SINGLE PIN HINGE HOLE IN THE WINGNUT

Attribute name	Attribute value
Size	4
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	13MHHM4.0-H.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	13MHHM-4-304

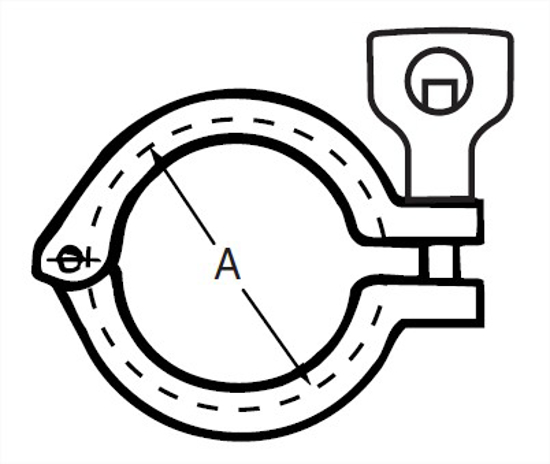

A, in.	4.82
A, mm.	122.43
Product Weight	1.23

Size

4

Connections

Clamp

Wall Thickness

0.083

Material Test Reports

COC Available for 304 Materials

Pressure Rating

See PSI Service Ratings for Clamps

Cad Model File

13MHHM4.0-H.STEP

Steel O’brien Part Number

13MHHM-4-304

A, mm.

122.43
