VNE Stainless | 3.0 CLAMP CHECK VALVE

Attribute name	Attribute value
Size	3
Seat Material	VITON
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	45C-63.0.STEP
Catalog File	valves.pdf

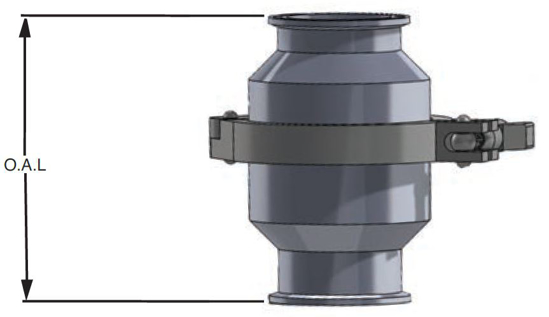

O.A.L, in.	6.125
O.A.L., mm.	155.58
Product Weight	6.25

Size

3

Industry Standard

3A;FDA Title 21, Paragraph 177.2600 / Class VI

Connections

Clamp X Clamp

Wall Thickness

0.065

Seat-Material

VITON

Material Test Reports

AVAILABLE UPON REQUEST

Valve Temperature Rating

15°F to 200°F

Catalog File

valves.pdf

O.A.L., mm.

155.58

3.0 CLAMP CHECK VALVE - VITON
