VNE Stainless | 2.0 CLAMP CHECK VALVE

Attribute name	Attribute value
Size	2
Seat Material	VITON
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	45C-62.0.STEP
Catalog File	valves.pdf

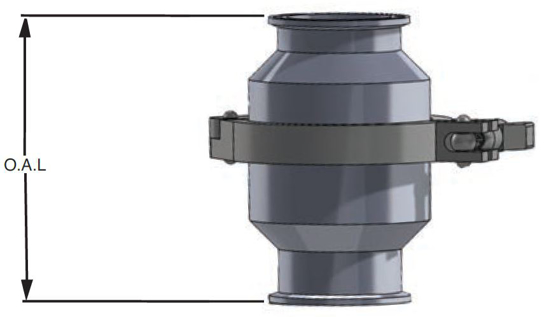

O.A.L, in.	5.065
O.A.L., mm.	128.65
Product Weight	5.4

Size

2

Industry Standard

3A;FDA Title 21, Paragraph 177.2600 / Class VI

Connections

Clamp X Clamp

Wall Thickness

0.065

Seat-Material

VITON

Material Test Reports

AVAILABLE UPON REQUEST

Valve Temperature Rating

15°F to 200°F

Catalog File

valves.pdf

O.A.L., mm.

128.65

2.0 CLAMP CHECK VALVE - VITON
