WELD STUB END #7 T316L

Attribute name	Attribute value
Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Stub End X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E14WA3.0.STEP
Catalog File	Fittings Catalog.pdf

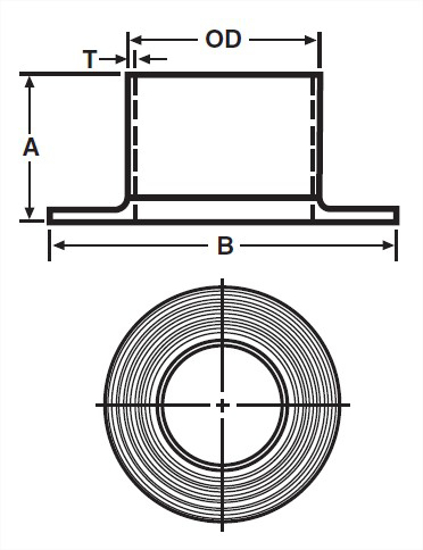

A, in.	2.25
A, mm.	57.15
B, in.	5
T Nom Wall, in.	0.065

Material Type

316L

ID / OD Polish

32 µin Mechanical ID / 32 µin Mechanical OD

OD Tube Size

3

Material-Type

316L

Passivated

Special Request

Catalog File

Fittings Catalog.pdf

A, mm.

57.15

T Nom Wall, in.

0.065
