WELD STUB END #7 T316L

Attribute name	Attribute value
Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Stub End X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E14WA2.5.STEP
Catalog File	Fittings Catalog.pdf

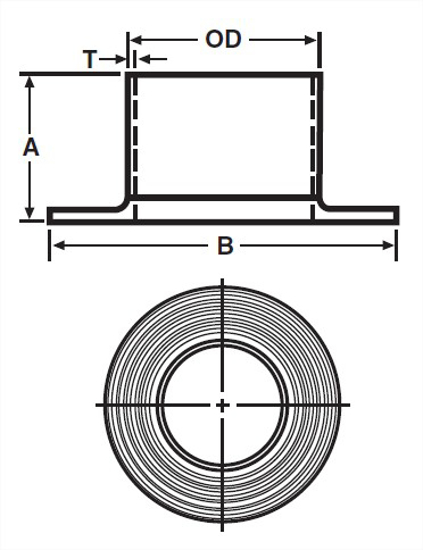

A, in.	2
A, mm.	50.8
B, in.	4.125
T Nom Wall, in.	0.065
