WELD REDUCING LATERAL T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28RWA2.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-2X1.5-7-316

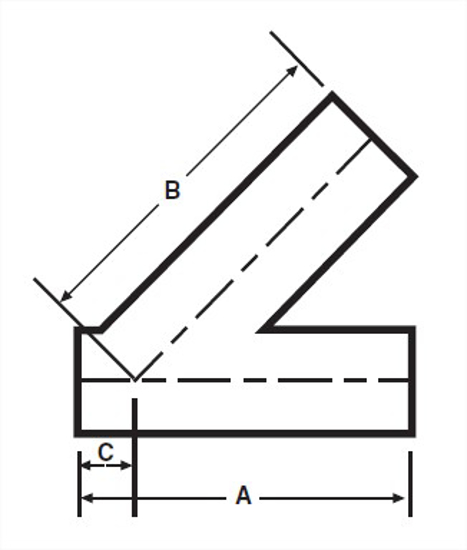

A, in.	8.625
A, mm.	219.08
B, in.	7.125
C, in.	1.625
C, mm.	41.28
T Nom Wall, in.	0.065
