WELD REDUCING LATERAL T304 3A

Attribute name	Attribute value
Material Type	304
Size	4.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4.0X1.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28RWA4.0X1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-4X1-7-304

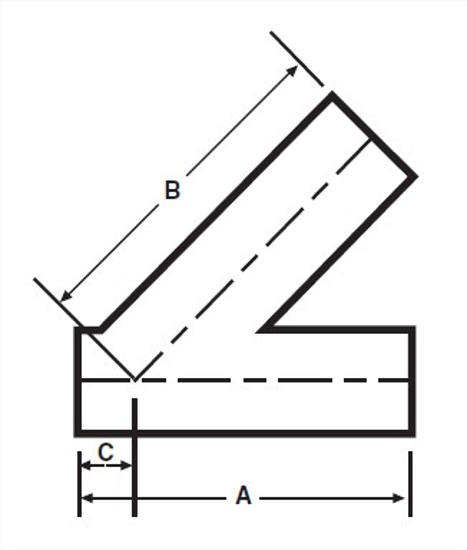

A, in.	12.812
A, mm.	325.42
B, in.	10.75
C, in.	2.062
C, mm.	52.37
T Nom Wall, in.	0.083 x 0.065
