WELD REDUCING LATERAL T304 3A

Attribute name	Attribute value
Material Type	304
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28RWA3.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	28WAR-3X2.5-7-304

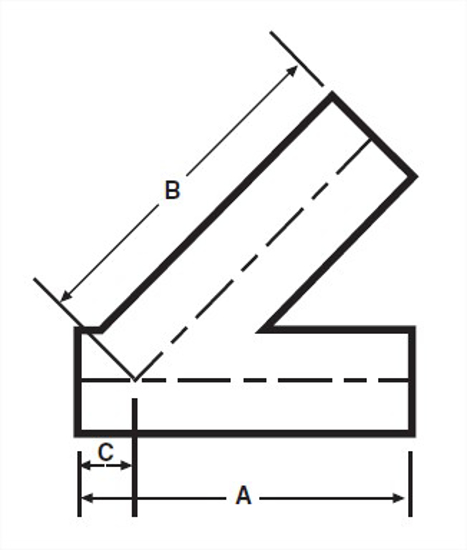

A, in.	10.75
A, mm.	273.05
B, in.	8.875
C, in.	1.875
C, mm.	47.63
T Nom Wall, in.	0.065

Material Type

304

Industry Standard

3A

Connections

Weld X Weld X Weld

Wall Thickness

0.065

Material Test Reports

COC Available for 304 Materials

Cad Model File

E28RWA3.0X2.5.STEP

Steel O’brien Part Number

28WAR-3X2.5-7-304

A, mm.

273.05

C, in.

1.875

T Nom Wall, in.

0.065
