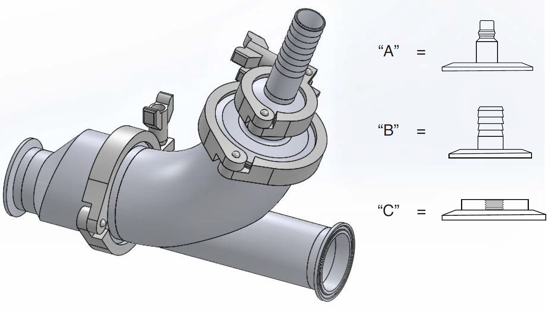

WELD BALL CHECK VLV W/VITON BALL VITON AIR BLOW/RUBBER HOSE

Attribute name	Attribute value
Size	2
Seat Material	Viton
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X 1" RUBBER HOSE BARB
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Cad Model File	Click here to request 3D Step File
Catalog File	valves.pdf

Size

2

Industry Standard

3A;FDA Title 21, Paragraph 177.2600

Connections

Weld X Weld X 1" RUBBER HOSE BARB

Wall Thickness

0.065

Seat-Material

VITON

Material Test Reports

AVAILABLE UPON REQUEST

Valve Temperature Rating

212° F

Catalog File

valves.pdf
