TYGON HOSE ADAPTER, T304

Attribute name	Attribute value
Material Type	304
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14HT1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHT
Steel O’brien Part Number	14MPHT-1-304
Wayland Part Number	W14MPHT
Dixon Part Number	14MPHT
Sanitary Solutions Part Number	SS14MPHT
Sanitube Part Number	14MPHT

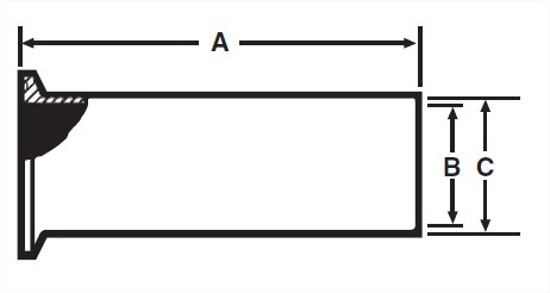

A, in.	4.5
A, mm.	114.3
B, in.	0.87
C, in.	1
C, mm.	25.4
Product Weight	0.38
