TRUE Y FEMALE E-LINE T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28BI1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28BI
Wayland Part Number	W28BI
Dixon Part Number	B28BI
Sanitary Solutions Part Number	SS28BI
Sanitube Part Number	28BI

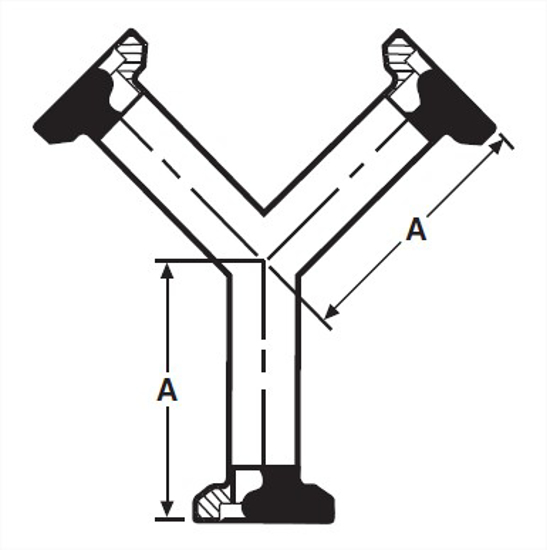

A, in.	3.937
A, mm.	100
Product Weight	1.54

Material Type

316L

Industry Standard

3A

Connections

Female E-Line X Female E-Line X Female E-Line

Wall Thickness

0.065

Material Test Reports

MTR’s Available Upon Request

Cad Model File

E28BI1.5.STEP

Alfa Laval Part Number

HDI-28BI

Dixon Part Number

B28BI

Sanitube Part Number

28BI

A, mm.

100
