TRUE Y BUTTWELD T316L #7 3A

Attribute name	Attribute value
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28WB3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WB
Steel O’brien Part Number	28WB-3-7-316
Wayland Part Number	W28WB
Dixon Part Number	B28WB
Sanitary Solutions Part Number	SS28WB
Sanitube Part Number	28WB

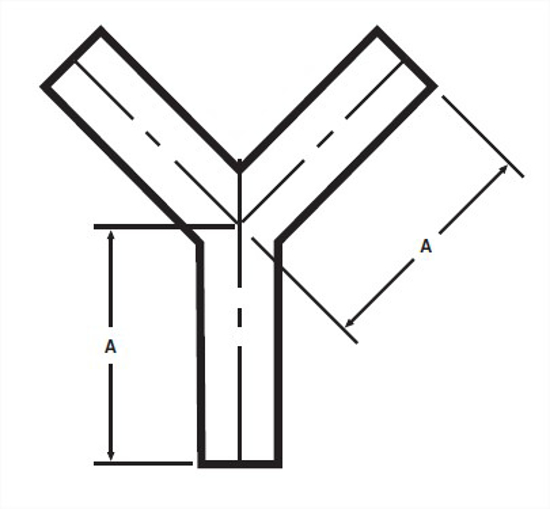

A, in.	6
A, mm.	152.4
T Nom Wall, in.	0.065
Product Weight	2.86
