TRANSITION PC .75 TUBE X 19 MM OD DIN T316L MACHINE FINISH

Attribute name	Attribute value
Size	DN15X.75
Industry Standard	Din 11866;Din 11850
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	DN15X.75
Wall Thickness	1.5
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf

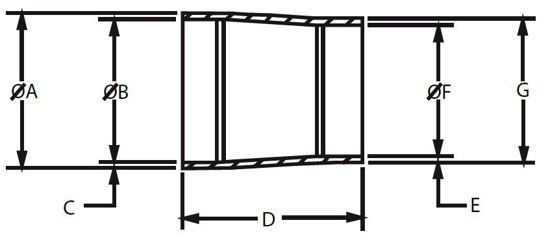

A, in.	0.75
A, mm.	19.05
B, in.	0.62
C, in.	0.065
C, mm.	1.65
D, in.	1.5
D, mm.	38.1
E, in.	0.06
E, mm.	1.5
F, in.	0.63
F, mm.	16
G, in.	0.75
G, mm.	19
