Picture of TRANSITION PC 4.0 TUBE X 4.0 SCH10 T316L MACHINE FINISH

TRANSITION PC 4.0 TUBE X 4.0 SCH10 T316L MACHINE FINISH

Manufacturer: VNE

In Stock: 10000

SKU: E17WW6L4.0XSCH10

VNE part number: 693-10180

Please log in to view pricing

Products specifications

Attribute name	Attribute value
Material Type	316L
Size	4
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17WW4.0XSCH10.STEP
Catalog File	Fittings Catalog.pdf

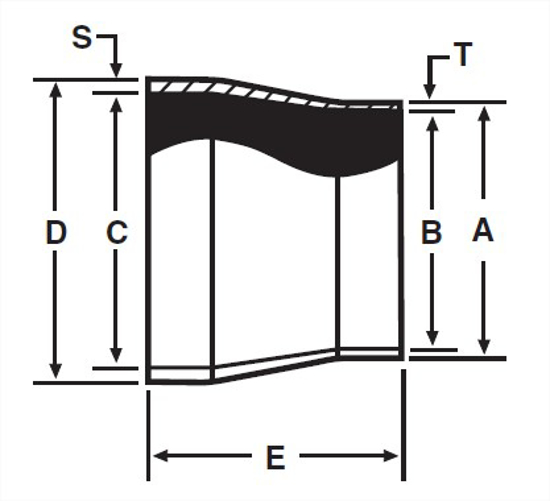

A, in.	4
A, mm.	101.6
B, in.	3.834
C, in.	4.26
C, mm.	108.2
D, in.	4.5
D, mm.	114.3
E, in.	2
E, mm.	50.8
S, in.	0.12
S, mm.	3.05
T Nom Wall, in.	0.083
Product Weight	0.844

Customers who bought this item also bought

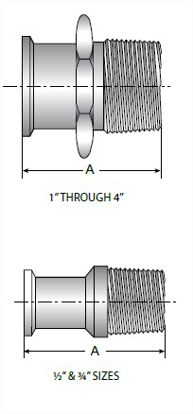

Picture of ADAPTER CLAMP X MNPT T316L 20 RA ID/32 RA OD SF1
