TRANSITION PC 4.0 TUBE X 104 MM OD DIN T316L MACHINE FINISH

Attribute name	Attribute value
Size	DN100X4.0
Industry Standard	Din 11866;Din 11850
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	DN100X4.0
Wall Thickness	0.083
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf

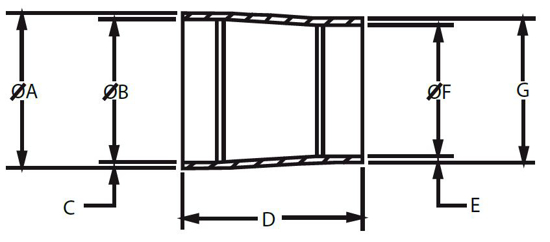

A, in.	4.09
A, mm.	104
B, in.	3.94
C, in.	0.08
C, mm.	2
D, in.	2
D, mm.	50.8
E, in.	0.083
E, mm.	2.11
F, in.	3.834
F, mm.	97.38
G, in.	4
G, mm.	101.6

Size

DN100X4.0

ID / OD Polish

32 µin Mechanical ID / 32 µin Mechanical OD

OD Tube Size

DN100X4.0

Material-Type

316L

Material Test Reports

MTR’s Available Upon Request

Catalog File

Fittings Catalog.pdf

A, mm.

104

C, in.

0.08

D, in.

2

E, in.

0.083

F, in.

3.834

G, in.

4
