TRANSITION PC 3.0 TUBE X 76.1/2.3 MM OD ISO T316L MACH FIN

Attribute name	Attribute value
Size	ISO65X3.0
Industry Standard	ISO1127
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	ISO65X3.0
Wall Thickness	2.3
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf

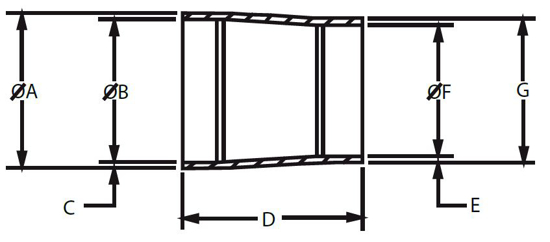

A, in.	3
A, mm.	76.2
B, in.	2.87
C, in.	0.065
C, mm.	1.65
D, in.	2
D, mm.	50.8
E, in.	0.09
E, mm.	2.3
F, in.	2.81
F, mm.	71.5
G, in.	3
G, mm.	76.1
