Picture of TRANSITION PC 2-1/2 TUBE X 2-1/2 SCH10 T316L MACHINE FINISH

TRANSITION PC 2-1/2 TUBE X 2-1/2 SCH10 T316L MACHINE FINISH

Manufacturer: VNE

In Stock: 10000

SKU: E17WW6L2.5XSCH10

VNE part number: 693-10172

Please log in to view pricing

Products specifications

Attribute name	Attribute value
Material Type	316L
Size	2.5
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17WW2.5XSCH10.STEP
Catalog File	Fittings Catalog.pdf

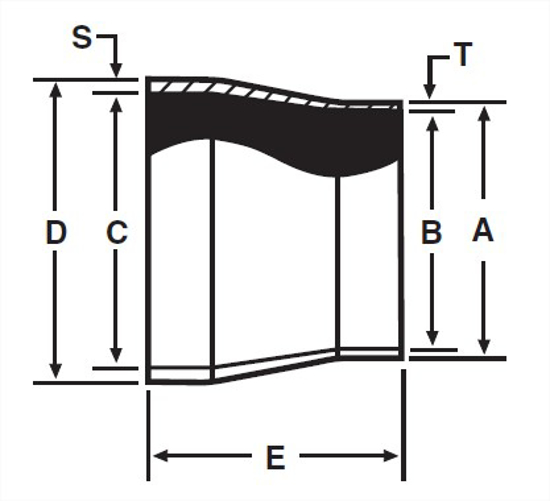

A, in.	2.5
A, mm.	63.5
B, in.	2.37
C, in.	2.635
C, mm.	66.93
D, in.	2.875
D, mm.	73.03
E, in.	1.5
E, mm.	38.1
S, in.	0.12
S, mm.	3.05
T Nom Wall, in.	0.065
