TRANSITION PC 1.0 TUBE X 1.0 SCH10 T316L MACHINE FINISH

Attribute name	Attribute value
Material Type	316L
Size	1
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf

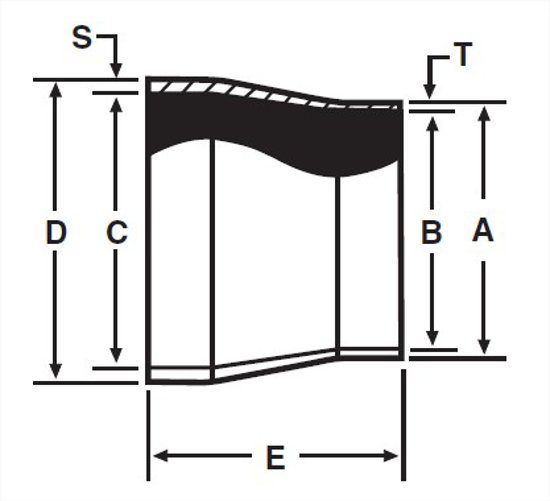

A, in.	1
A, mm.	25.4
B, in.	0.87
C, in.	1.097
C, mm.	27.86
D, in.	1.315
D, mm.	33.4
E, in.	1
E, mm.	25.4
S, in.	0.109
S, mm.	2.77
T Nom Wall, in.	0.065
Product Weight	0.211
