TRANSITION PC 1-1/2 TUBE X 1-1/2 SCH40 T316L MACHINE FINISH

Attribute name	Attribute value
Material Type	316L
Size	1.5
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf

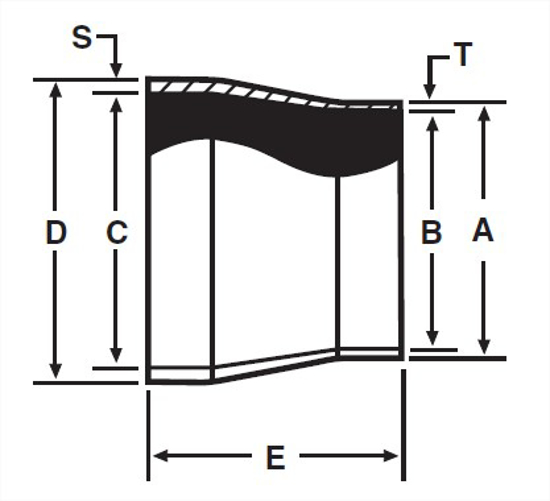

A, in.	1.5
A, mm.	38.1
B, in.	1.37
C, in.	1.61
C, mm.	40.89
D, in.	1.9
D, mm.	48.26
E, in.	1.5
E, mm.	38.1
S, in.	0.145
S, mm.	3.68
T Nom Wall, in.	0.065
Product Weight	0.258
