THREADED WELDING FERRULE T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	15A1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L15A7
Wayland Part Number	W15A
Dixon Part Number	15A
Sanitary Solutions Part Number	SS15A
Sanitube Part Number	15A

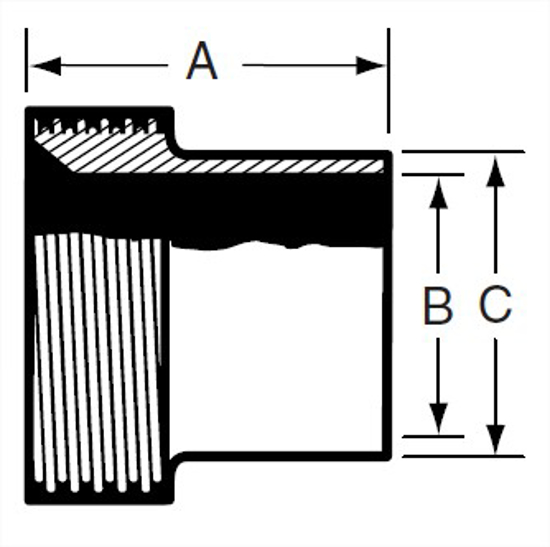

A, in.	1.375
A, mm.	34.93
B, in.	0.87
C, in.	1
C, mm.	25.4
Product Weight	0.16

Material Type

316L

Industry Standard

3A

Connections

Plain Bevel Seat X Weld

Wall Thickness

0.065

Material Test Reports

MTR’s Available Upon Request

Cad Model File

15A1.0.STEP

Alfa Laval Part Number

L15A7

Dixon Part Number

15A

Sanitube Part Number

15A

A, mm.

34.93

C, in.

1

Product Weight

0.16
