THREADED BEVEL SEAT RECESSED FERRULE T316L

Attribute name	Attribute value
Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Recessed
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf

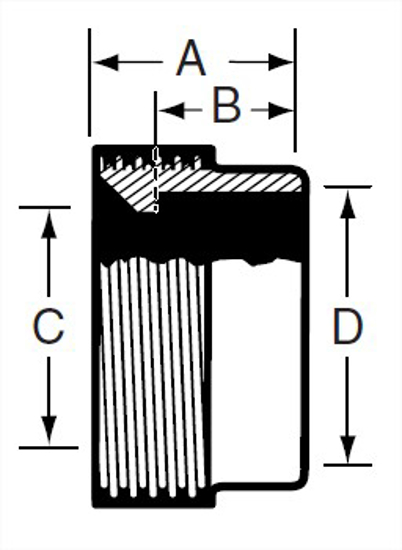

A, in.	0.875
A, mm.	22.23
B, in.	0.625
C, in.	1.37
C, mm.	34.8
D, in.	1.5
D, mm.	38.1
Product Weight	0.24
