TEE WELD 316L #7 3A

Attribute name	Attribute value
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WWW4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWW
Steel O’brien Part Number	7WWW-4-7-316
Wayland Part Number	W7WWW
Dixon Part Number	B7WWW
Sanitary Solutions Part Number	SS7WWW
Sanitube Part Number	7WS

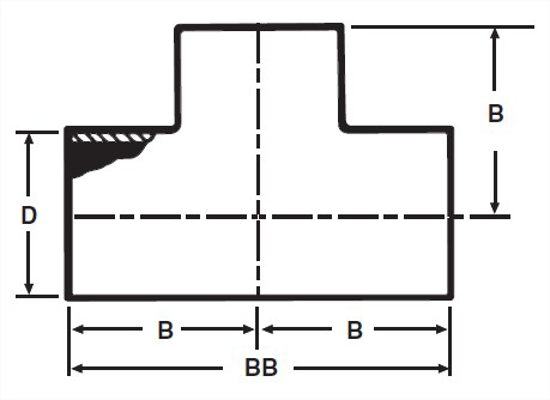

B, in.	3.437
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
BB, in.	6.875
BB, mm.	174.63
Product Weight	2.36

Material Type

316L

Industry Standard

3A

Connections

Weld X Weld X Weld

Wall Thickness

0.083

Material Test Reports

MTR’s Available Upon Request

Cad Model File

E7WWW4.0.STEP

Alfa Laval Part Number

L7WWW

Wayland Part Number

W7WWW

Sanitary Solutions Part Number

SS7WWW

B, in.

3.437

D, mm.

101.6

BB, in.

6.875

Product Weight

2.36
