TEE W X W X C 316L #7 3A

Attribute name	Attribute value
Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WWC6.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWM-6-7-316

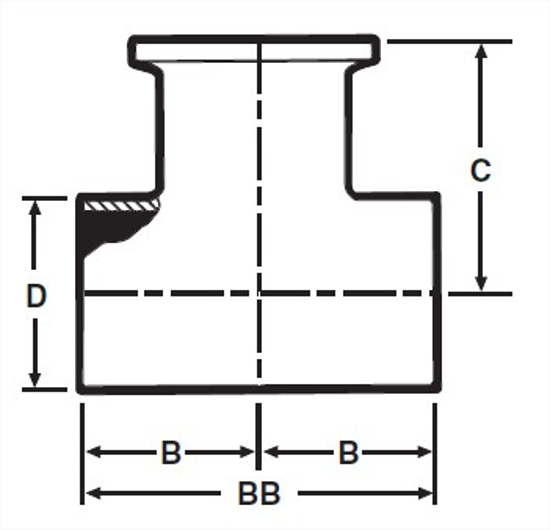

B, in.	5.625
C, in.	6.5
C, mm.	165.1
D, in.	6
D, mm.	152.4
T Nom Wall, in.	0.109
BB, in.	11.25
BB, mm.	285.75
