TEE W X W X C 304 #7 3A

Attribute name	Attribute value
Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWC6.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWM-6-7-304

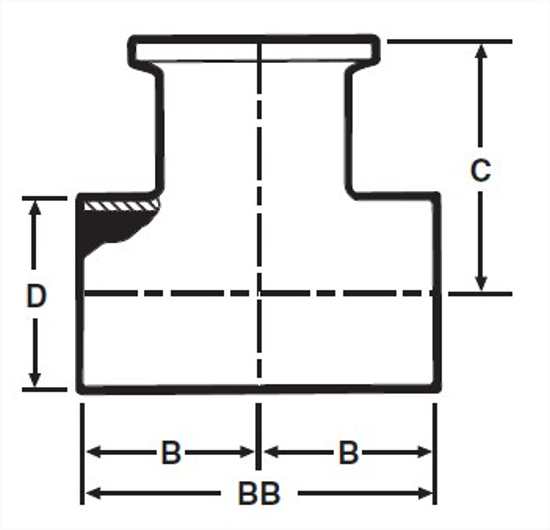

B, in.	5.625
C, in.	6.5
C, mm.	165.1
D, in.	6
D, mm.	152.4
T Nom Wall, in.	0.109
BB, in.	11.25
BB, mm.	285.75

Material Type

304

Industry Standard

3A

Connections

Weld X Weld X Clamp

Wall Thickness

0.109

Material Test Reports

COC Available for 304 Materials

Cad Model File

E7WWC6.0.STEP

Steel O’brien Part Number

7WWM-6-7-304

C, in.

6.5

D, in.

6

T Nom Wall, in.

0.109

BB, mm.

285.75
