TEE W X W X C 304 #7 3A

Attribute name	Attribute value
Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWC3.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWM-3-7-304

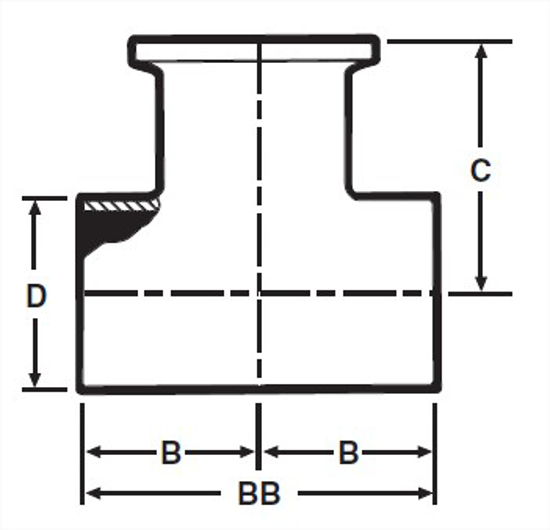

B, in.	2.593
C, in.	3.093
C, mm.	78.56
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
BB, in.	5.187
BB, mm.	131.75
Product Weight	1.26
