TEE W X W X C 304 #7 3A

Attribute name	Attribute value
Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWC1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWM-1-7-304

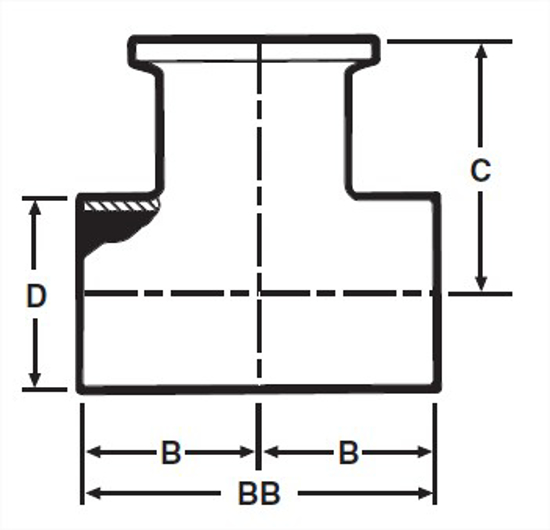

B, in.	1.125
C, in.	1.625
C, mm.	41.28
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
BB, in.	2.25
BB, mm.	57.15
Product Weight	0.28
