TEE W X W X ACME THREAD 316L #7 3A

Attribute name	Attribute value
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Threaded Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWT
Wayland Part Number	W7WWT
Dixon Part Number	B7WWT
Sanitary Solutions Part Number	SS7WWT
Sanitube Part Number	7WWT

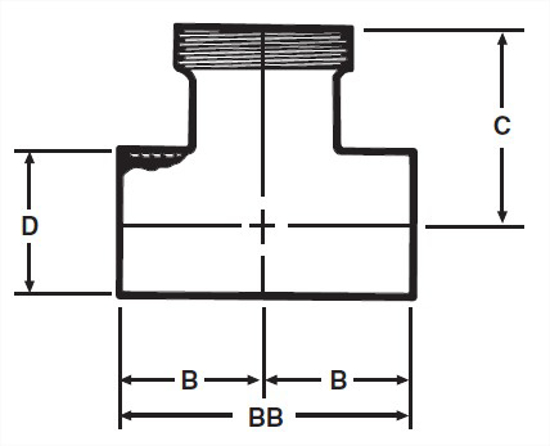

B, in.	2.062
C, in.	2.781
C, mm.	70.64
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
BB, in.	4.125
BB, mm.	104.78
Product Weight	0.88
