TEE W X C X W T316L #7 3A

Attribute name	Attribute value
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WCW2.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WMW-2-7-316

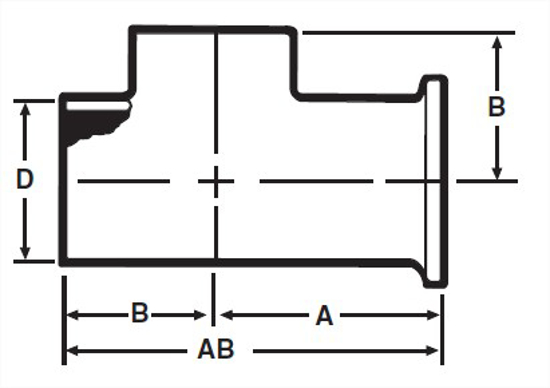

A, in.	2.562
A, mm.	65.07
B, in.	2.062
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
AB, in.	4.625
AB, mm.	117.48
Product Weight	0.72
