TEE W X C X W T304 #7 3A

Attribute name	Attribute value
Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WCW2.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WMW-2.5-7-304

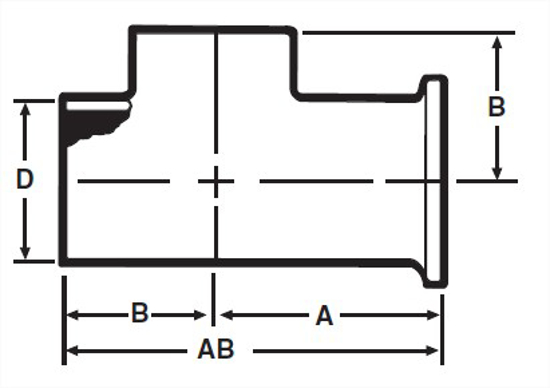

A, in.	2.843
A, mm.	72.21
B, in.	2.343
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
AB, in.	5.187
AB, mm.	131.75
Product Weight	0.9
