TEE W X C X W T304 #7 3A

Attribute name	Attribute value
Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WCW1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WMW-1.5-7-304

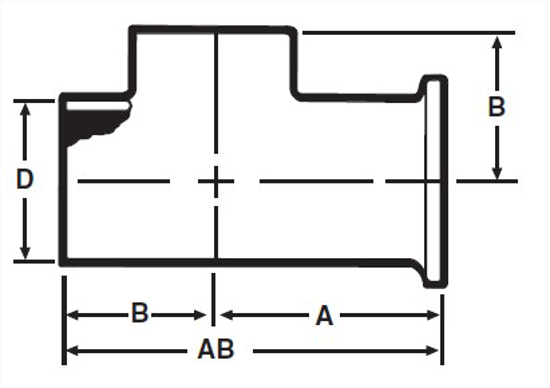

A, in.	2.156
A, mm.	54.76
B, in.	1.656
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
AB, in.	3.812
AB, mm.	96.82
Product Weight	0.44

Material Type

304

Industry Standard

3A

Connections

Weld X Clamp X Weld

Wall Thickness

0.065

Material Test Reports

COC Available for 304 Materials

Cad Model File

E7WCW1.5.STEP

Steel O’brien Part Number

7WMW-1.5-7-304

A, mm.

54.76

D, in.

1.5

T Nom Wall, in.

0.065

AB, mm.

96.82
