TEE W X 15TR X 15TR T304 #7 3A

Attribute name	Attribute value
Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WTT
Wayland Part Number	W7WTT
Dixon Part Number	B7WTT
Sanitary Solutions Part Number	SS7WTT
Sanitube Part Number	7WTT

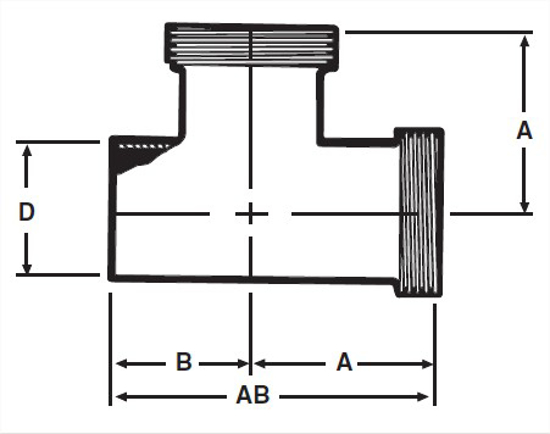

A, in.	1.812
A, mm.	46.02
B, in.	1.125
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
AB, in.	2.937
AB, mm.	74.6
Product Weight	0.44

Material Type

304

Industry Standard

3A

Connections

Weld X Threaded Bevel Seat X Threaded Bevel Seat

Wall Thickness

0.065

Material Test Reports

COC Available for 304 Materials

Cad Model File

Click here to request 3D Step File

Alfa Laval Part Number

L7WTT

Dixon Part Number

B7WTT

Sanitube Part Number

7WTT

A, mm.

46.02

D, in.

1

T Nom Wall, in.

0.065

AB, mm.

74.6
